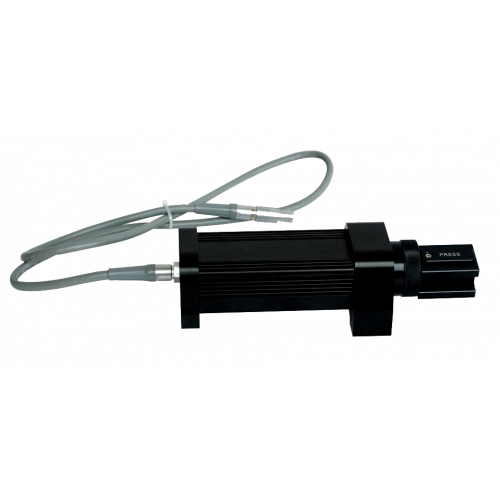

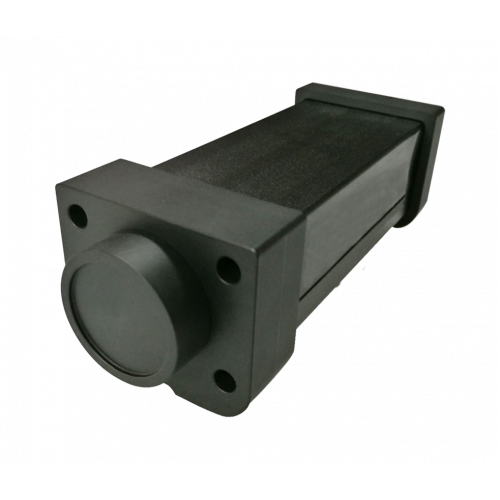

ACP8712C USB Fast Sampling Optical Power Meter Head
ACP8712C USB Fast Sampling Optical Power Meter Head offers superior performances for testing of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optical test and measurement applications. It is designed especially for volume production line applications.
ACP8712C USB Fast Sampling Optical Power Meter Head is a high performance, small dimension, fast startup, and affordable optical power meter head. It has low power, high power options, and can be used with single and dual channel optical power meter modules. We also can provide high channel count solutions for up to 16 channels.
Features
- High Performance
- Quick Startup
- Low/High Power Range
- Small Dimension
- Affordable Price
Applications
- WDM, AWG, PLC Components Insertion Loss, Return Loss Test
- Fiber Sensor, Fiber Cable Test
- PMD and PDL Measurement
- Fiber Optical, Telcom R and D Lab Test
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Model# | ACP8721C | |
| Wavelength Range | nm | 850 ~ 1700 |
| Power Range | dBm | +5 ~ -85 |
| Power Sampling Speed (Rate) | 10us (100KHz) | |
| Application Fiber Type | Standard SM and MM up to 62.5um core size | |
| Uncertainty (accuracy) at Reference Condition | nm | ± 4% (1200 ~ 1610) |
| Relative Uncertainty (accuracy) at Reference Condition | dB | < 0.02 (Typical) |
| Linearity (power) | dB | ≤± 0.06 (1200nm ~ 1610nm, +0~ -60dBm) |
| Return Loss | dB | > 40 |
| Operating Temperature | °C | 0 to +40 |
| Storage Temperature | °C | - 30 to +80 |
| Recalibration Period | dB | 2 Years |
| Package Dimensions (HxWxD) | mm | 63 x 43 x 150 |
| Weight | kg | 0.5 |
