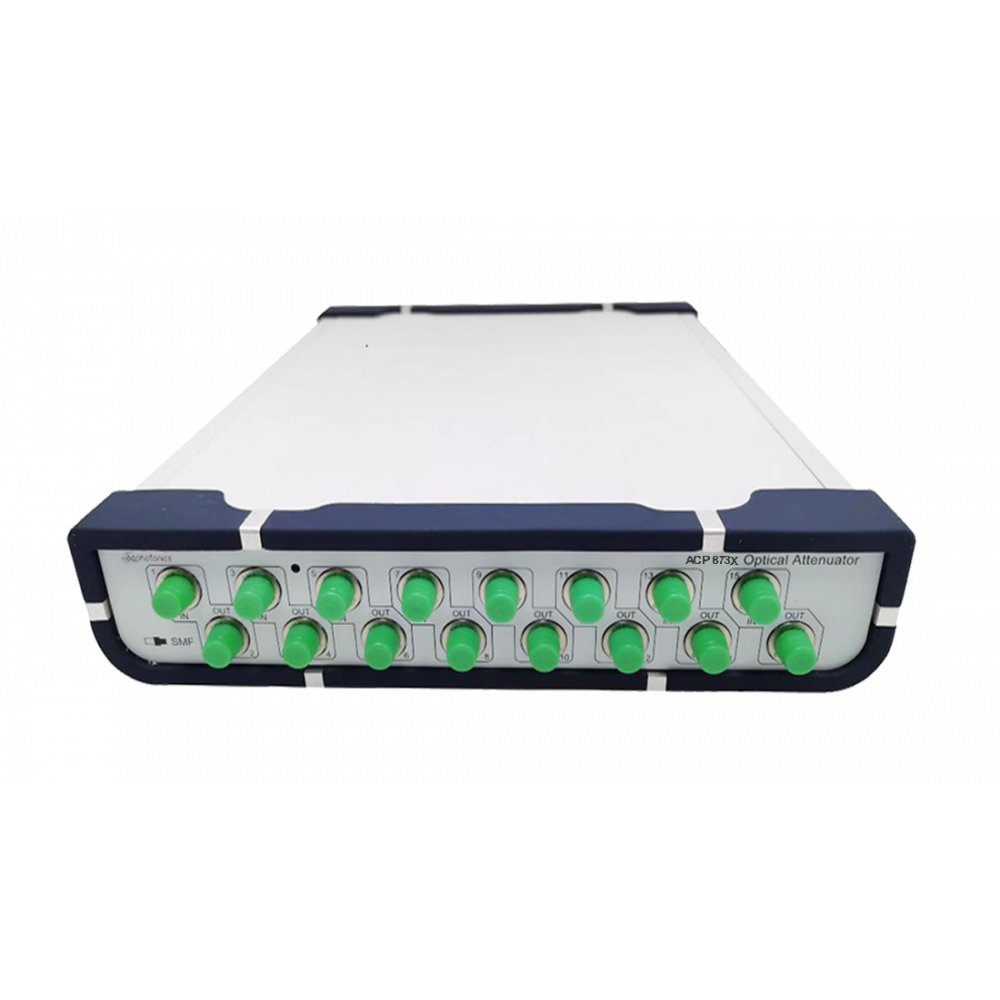

ACP873X 4/8 CH Single-Mode Variable Optical Attenuator
ACP8734/8738 4/8 CH Single-mode Variable Optical Attenuator offers superior performances for channel balancing, power equalization, gain tilting and power adjustment of DWDM systems, optical amplifiers such as EDFA, and general purpose fiber optical test and measurement applications.
Features
- Channel Balancing for DWDM Systems
- Power Equalization in Optical Add/Drop Modules
- Gain Tilting and Power Adjustment in EDFA
- Receiver protection
Applications
- Continuous Tuning without Moving Parts
- Quick Startup
- Resistance of Mechanical Vibration
- Small Dimension
- Affordable Price
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Model# | ACP8734 4GH / ACP8738 8GH | |
| Channel Number | 4CH/8CH | |
| Wavelength Range | nm | 1270 /1286/1290/1295/1300/1305/1310 /1330/1510/1530/1550/1570 |
| Attenuator Range | dB | 0 ~ 40 |
| Insertion Loss | dB | ≤ 1.5 |
| Fiber Type | um | 9/125 Single mode |
| Connector Type | FC/UPC Connector (FC/APC Option) | |
| Attenuation Accuracy | ≤±0.1dB (0 ~ 25 dB), ≤±0.02dB By Power Control | |
| Repeatability | dB | ≤± 0.02 |
| Attenuation Transition Speed | dB/s | 0.1 ~ 50 |
| Averaging Time of Power Meter | ms | 1 ~ 1000 |
| Sampling Time | ms | 100 |
| Return Loss | dB | > 45 |
| Maximum Safe Input Power | dBm | +27 |
| Communication Interface | RS232, USB, RJ45 Control by PC | |
| Recalibration Period | 2 Years | |
| Operation Temperature | °C | 0 ~ +40 |
| Storage Temperature | °C | -30 ~ +80 |
| Power Supply | V | 100 ~ 240 |
| Package Dimensions (HxWxD) | mm | 55 x 235 x 320 |
| Weight | kg | 3.0 |
