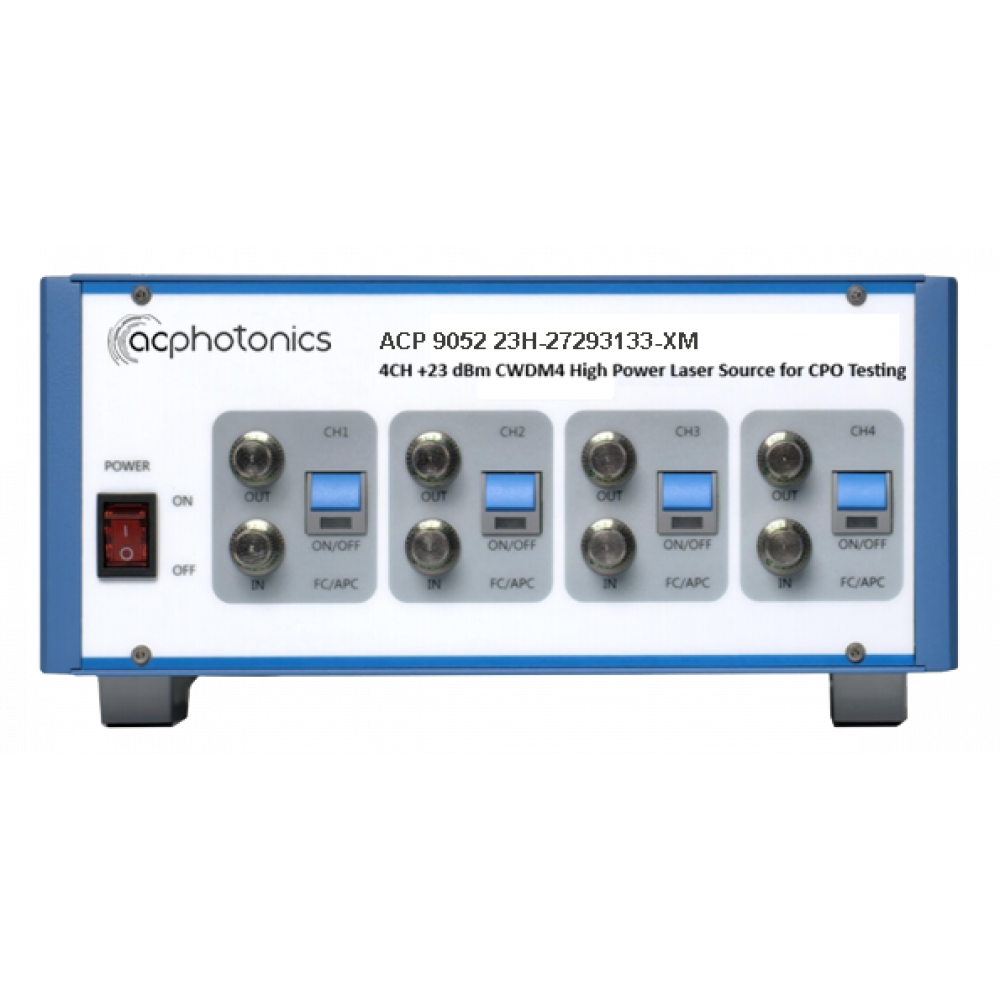

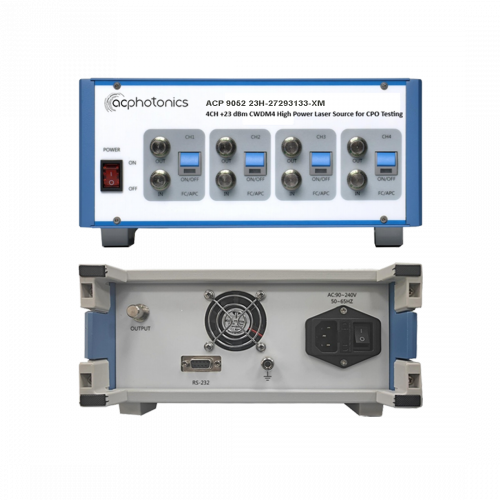

ACP9052 4CH 200mW Desktop CWDM4 DFB Laser Source
The ACP9052-23H-27293133 200 mW High Power 4 Chanel Desktop CWDM4 DFB Laser Source offers superior performances for testing of AI data center CPO systems, CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optical test and measurement applications. It is designed especially for volume coupler, transceiver/receiver and PLC production line applications.
ACP9052-23H-27293133 200 mW High Power 4 Chanel Desktop CWDM4 DFB Laser Source is a high performance, small dimension, fast startup, affordable optical laser source. It provides 4 channels of high performance, fix wavelength laser outputs. It provides 4 channels of 1270,1290, 1310,1330 nm wavelength laser outputs. Please contact us for availability if other wavelength options are needed.
- High power 200 mW Laser Outputs
- Quick Startup
- 4CH of Different Wavelengths
- Integrated 4CH Wavelength Mux Function
- Small Dimension
- AI CPO System Components and Subsystem Test
- WDM, AWG, PLC Components Insertion Loss, Return Loss Test
- Fiber Sensor, Fiber Cable Test
- PMD and PDL Measurement
- Fiber Optical, Telcom R and D Lab Test
- CWDM/LanWDM Transceiver/Receiver Test
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Model# | ACP9052-23H-27293133 | |

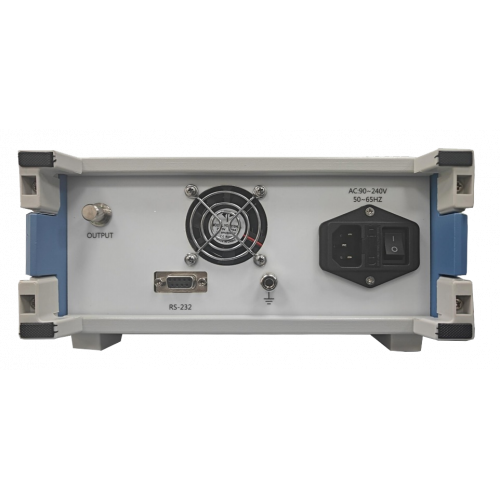

| Operation Wavelength | nm | 1270/1290/1310/1330nm or any 4 of following list wavelength. Any 4Channel Laser On/Off Manual Control 4CH DFB Laser Max Output on Rear Panel |
| Optional Wavelength | nm | 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450,1470,1490, 1510, 1530,1550,1570, 1590, 1610, 1625 |
| Wavelength Accuracy | nm | ± 5 |
| Output Power | mW | ≥ 200 |
| Connector Type | FC/APC (Other Adaptor can be Customized) | |
| Bandwidth (-3dB) | nm | < 0.1 |
| Bandwidth (-20dB) | nm | < 0.5 |
| Output Power Stability within 15mins | dB | ≤± 0.02 |
| Output Power Stability within 24 hrs. | dB | ≤± 0.05 |
| Operating Temperature | °C | 0 to +40 |
| Storage Temperature | °C | - 30 to +85 |
| Side Mode Suppression Ratio | dB | > 35 |
| Package Dimensions (HxWxD) | mm | 300 x 235 x 100 |
| Weight | kg | 5.0 |
