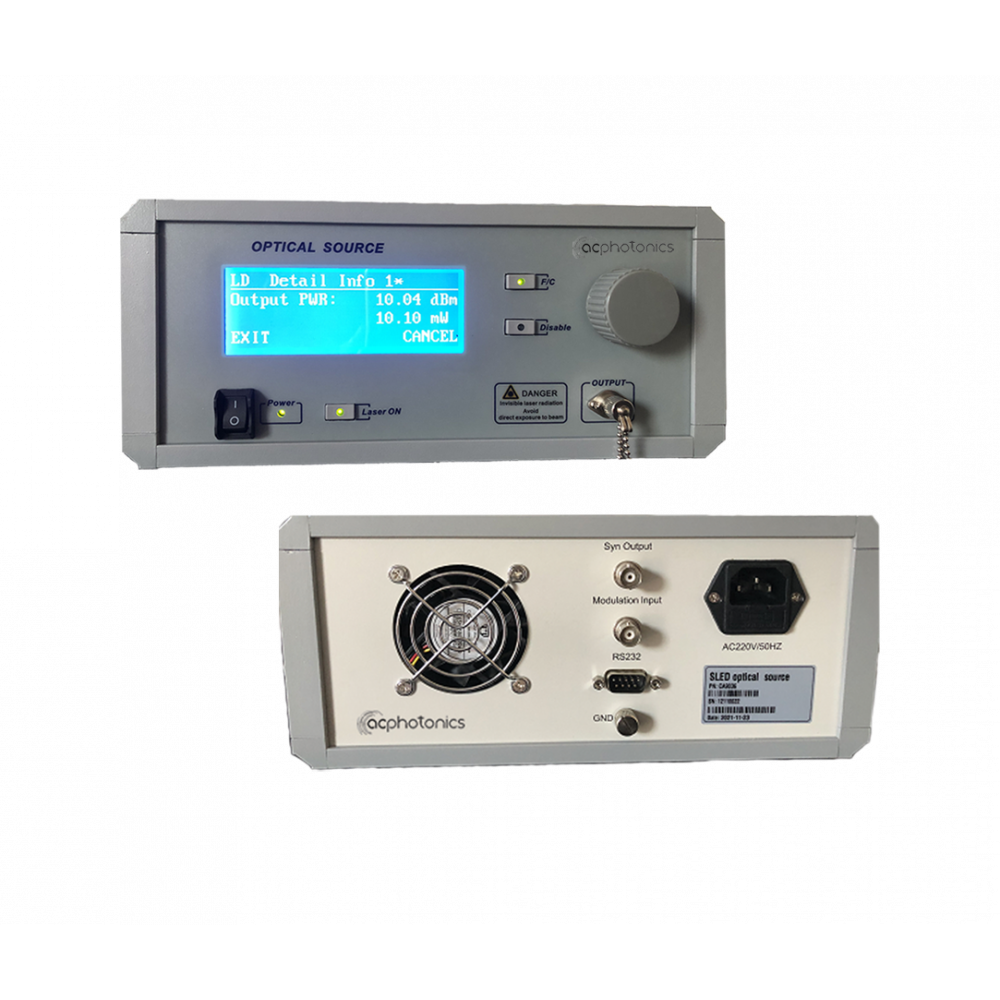

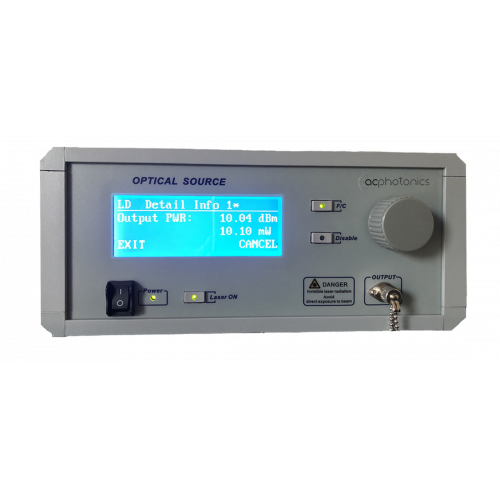

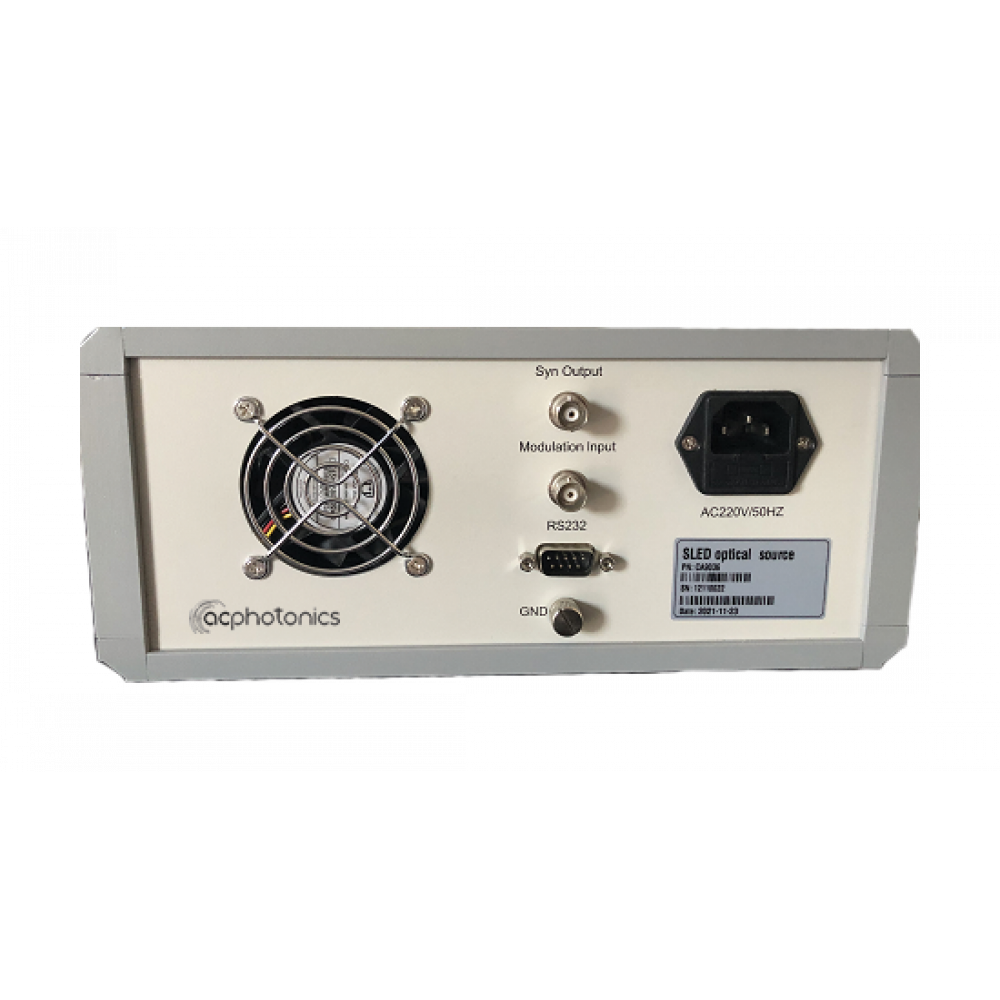

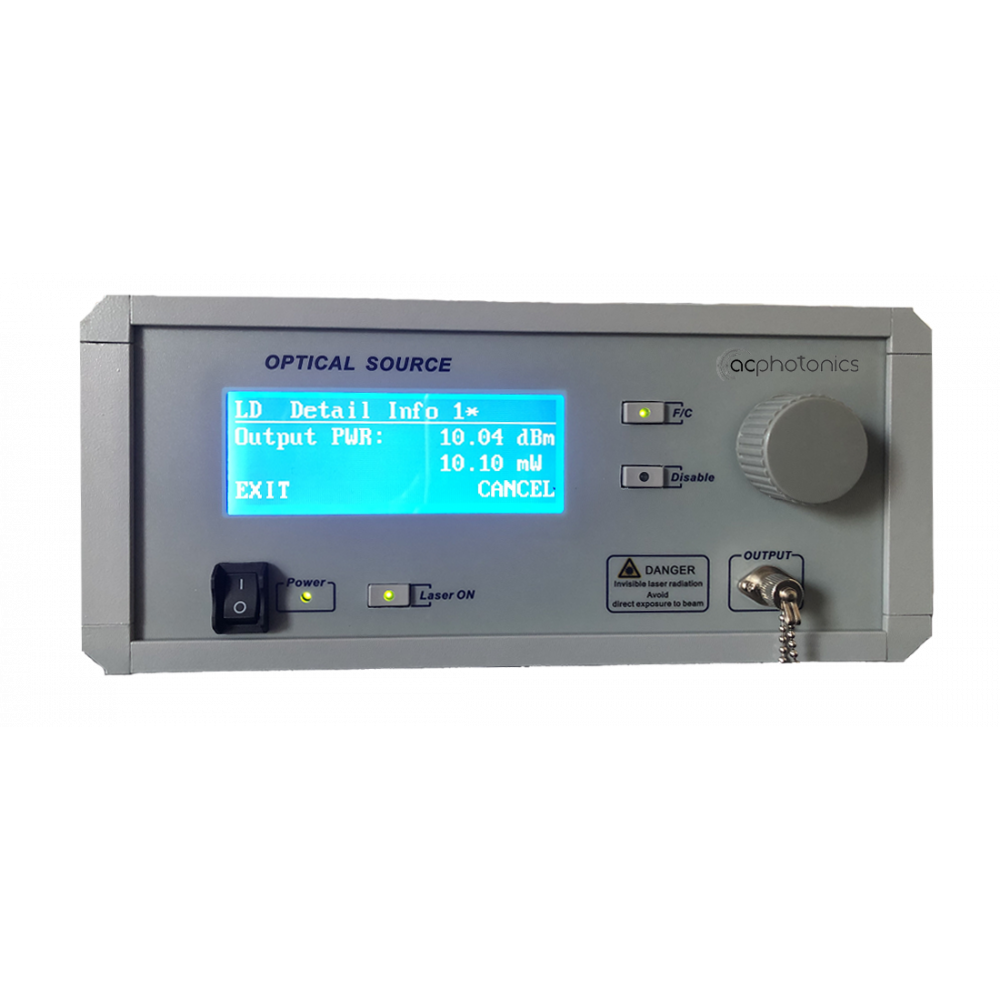

ACP9036 1650±15nm Broadband SLED Light Source
ACP9036 1650±15 nm Broadband SLED Light Source is a high performance, small dimension, fast startup, affordable optical broadband light source. It provides 1635 ~ 1665 nm wavelength range broadband light output. ACP9036 offers superior performances for testing of DWDM/CWDM components, AWG & PLC components, optical amplifiers, telecom optical filters and other general purpose fiber optical test and measurement applications. It is designed especially for volume DWDM/CWDM filter and component production line applications.
Features
- Broadband Light Output
- High Spectral Density
- Quick Startup
- Small Dimension
- Affordable Price
Applications
- DWDM/CWDM Filters and Components Test
- Fiber Optic Parts and Components Spectrum Analysis
- Optical Coherence Tomography (OCT)
- Fiber Sensing, Fiber Cable Test
- Fiber Optical, Telcom R and D Lab Test
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Model# | ACP9036 | |
| Operation Wavelength | nm | 1635 ~ 1665 |
| Total Output Power | mW | > 10 |
| Spectral Density | dBm/0.1nm | ≥ -18 |
| Connector Type | FC/APC (Other Adaptor can be Customized) | |
| Spectral Density Stability within 15mins | dB | <± 0.02* |
| Output Power Stability within 15mins | dB | <± 0.02* |
| Output Power Stability within 8 hrs. | dB | ≤± 0.05* |
| Operation Model | CW | |
| Fiber Type | Single Mode SFM-28 | |
| Operating Temperature | °C | 0 to +40 |
| Storage Temperature | °C | - 30 to +80 |
| Power Supply | AC 110 ~ 220V ±10%, 50Hz, 20W | |
| Package Dimensions (HxWxD) | mm | 44 x 224 x 300 |
| Weight | kg | 5.0 |
*All spectral and power stability test is based on temperature 25 Degree, temperature tolerance +/- 2 degree, power on 40 minutes, CW operation mode condition.
