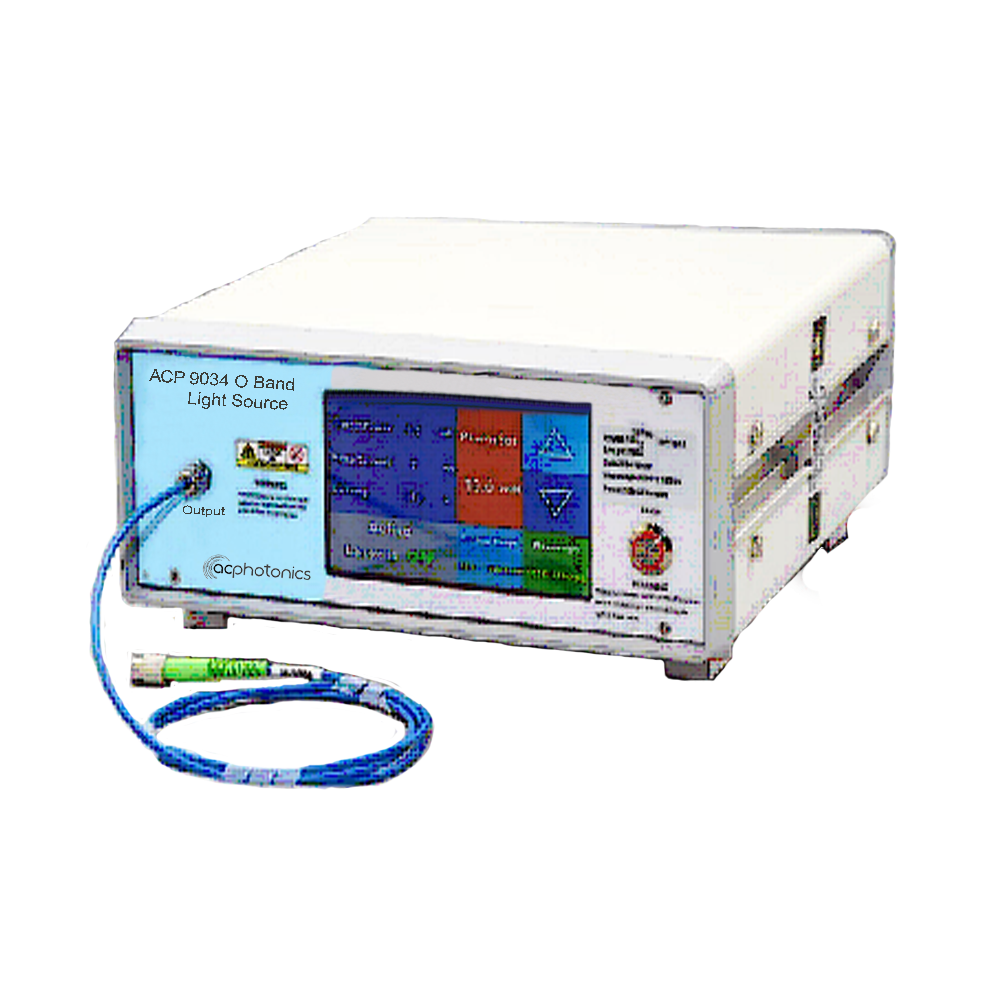

ACP9034 O Band SLED Broadband Light Source
ACP9034 O Band SLED Broadband Light Source is based on SLED technology, and provides significantly more power density into a single-mode fiber than a regular LED and is 100nm wide broadband light source. It offers superior performances for testing of DWDM/CWDM components, AWG & PLC components, optical amplifiers, optical filters and other general purpose fiber optical test and measurement applications. It is designed especially for volume DWDM/CWDM filter and component production line applications.
ACP9034 O Band SLED Broadband Light Source is a high Performance, small dimension, fast startup, affordable optical broadband light source. It provides 1250 ~ 1350nm O band broadband light output.
- Broadband Light Output
- High Spectral Density
- Quick Startup
- Small Dimension
- Affordable Price
- DWDM/CWDM Filters and Components Test
- Fiber Optic Parts and Components Spectrum Analysis
- Optical Coherence Tomography (OCT)
- Fiber Sensing, Fiber Cable Test
- Fiber Optical, Telcom R and D Lab Test
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Model# | ACP9034 | |
| Operation Wavelength | nm | 1255 ~ 1355 |
| Bandwidth (-10dB) | nm | ≥ 100 |
| Total Output Power | mW | > 20 |
| Spectral Density | dB/nm | ≥ -19 |
| Connector Type | FC/APC (Other Adaptor can be Customized) | |
| Output Power Stability within 15mins | dB | <± 0.01* |
| Output Power Stability within 8 hrs. | dB | ≤± 0.08* |
| Polarization Extinction Ratio | dB | ≤ 0.02 |
| Operation Model | CW | |
| Fiber Type | Single Mode SFM-28 | |
| Operating Temperature | °C | 0 to +70 |
| Storage Temperature | °C | - 30 to +80 |
| Power Supply | AC 110 ~ 220V ±10%, 50Hz, 20W | |
| Package Dimensions (HxWxD) | mm | 115 x 255 x 285 |
| Weight | kg | 5 |
*All spectral and power stability test is based on temperature 25 Degree, temperature tolerance +/- 2 degree, power on 40 minutes, CW operation mode condition.
