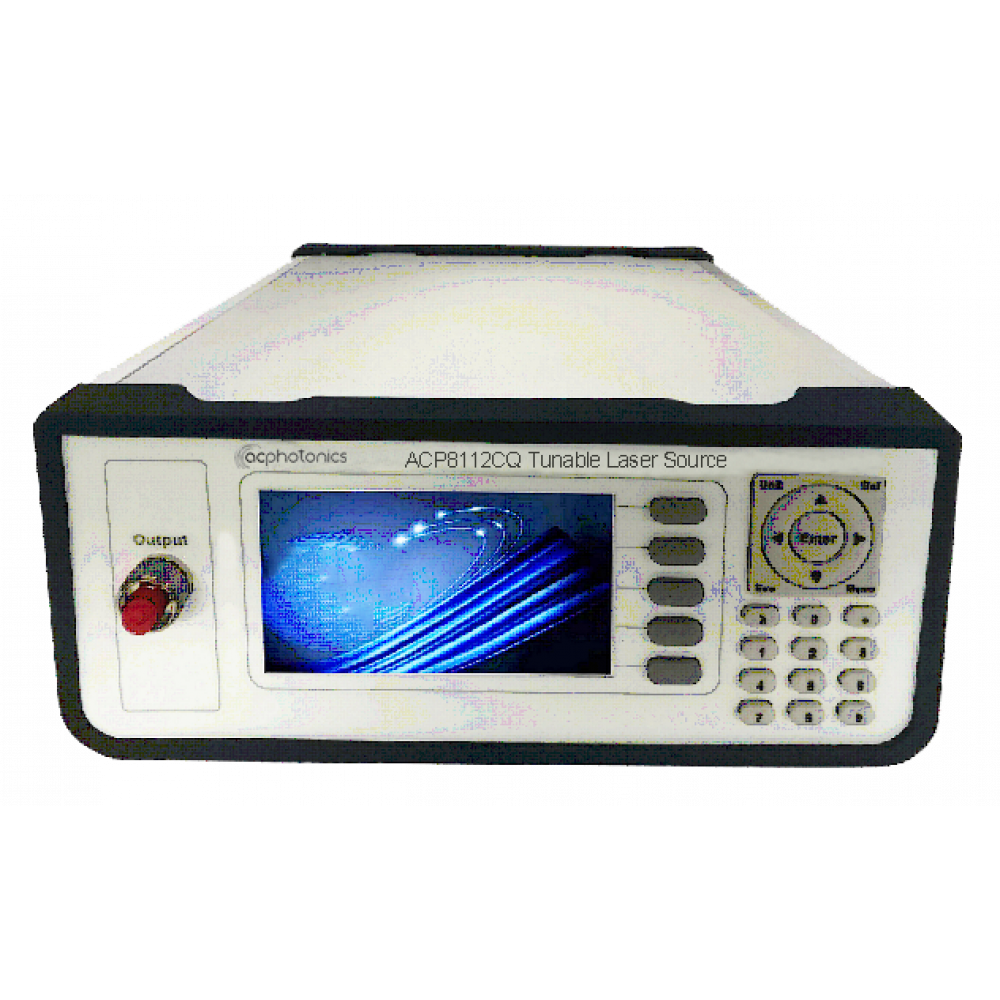

ACP8112CQ Desktop C Band High Speed Sweep Tunable Laser Source
ACP8112 Desktop Tunable Laser offers superior performances for testing of DWDM components, AWG & PLC components, EDFA optical amplifiers, DWDM systems and other general purpose fiber optic test and measurement applications. It offers high wavelength accuracy, high output power, with small dimensions and fast startup, and is an affordable tunable laser source. The laser has O band, C band, L band, or C + L band options.
Features
- High Wavelength Accuracy
- High Output Power
- Small Dimensions and Quick Startup
- O Band, C Band, L Band and C+L Band Options
Applications
- WDM, GFF, AWG, PLC Test
- Fiber Sensor Test
- Optical Coherence Tomography (OCT)
- Fiber Sensing, Fiber Cable Test
- Fiber Optical, Telcom R and D Lab Test
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Model# | ACP8112CQ | |
| Wavelength Tuning Range | nm | 1526 ~ 1568 |
| Output Power | dBm | ≥ 12 |
| Wavelength Resolution | pm | 1.0 |
| Absolute Wavelength Accuracy | pm | ±10 (Typ.) ＜5 |
| Relative Wavelength Accuracy | pm | ±5 (Typ.) ±2 |
| Wavelength Repeatability | pm | ±2 (Typ.) ±1 |
| Wavelength Stability | pm | <± 2 (24hrs at Constant Temperature) |
| Tuning Speed | ≤0.025us per step (40,000step/s) (5Hz with sweep 1pm step) | |
| Power Stability | dB | ±0.01 (15min) |
| Power Repeatability | dB | ± 0.05 |
| Power Linearity | dB | ± 0.3 |
| Power Flatness Versus Wavelength | dB | 0.3 (Typ.), 0.5 (Max.) |
| Side-mode Suppression Ratio | dB | ≥ 45 |
| Output Optical Interface | PM, FC/APC or FC/PC Connector | |
| Communication Interface (ID: 7673) | RS232 or USB | |
| Output Trigger Port | nm | BNC Trigger |
| Operating Temperature | °C | 0 to +45 |
| Storage Temperature | °C | -40 to +80 |
| Power Supply | AC 110 ~ 240V ±10%, 48 ~ 66Hz, 100VA (Max.) | |
| Package Dimensions (HxWxD) | mm | 105 x 245 x 320 |
| Weight | kg | 2.0 |
