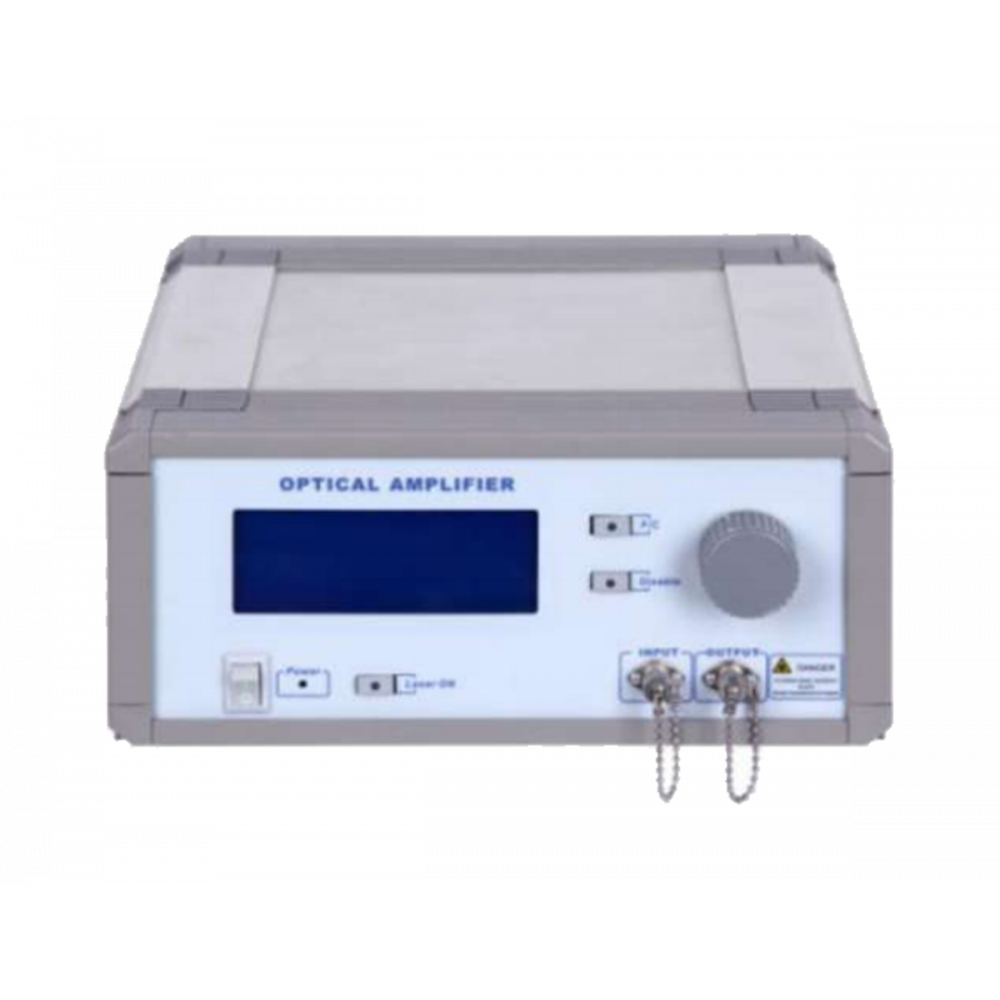

ACPGAT01-XX Amplitude Adjustable Desktop +30dBm C Band EDFA
ACPGAT01-XX Amplitude Adjustable +30 dBm C Band Desktop EDFA is a gain flattened PM desktop EDFA, with high reliability pump laser and utilizing Ytterbium-doped fiber amplification technology, with a maximum saturated output power of 1W(+30dBm).
Its unique APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuits ensure high stability of output power, and unique optical circuit design ensures excellent optical performances. The control, adjustment and monitor functions are intelligent and user-friendly. RS232 port is also included.
Features
- Low Noise Figure
- Covering Full C-band
- Nonlinear Effect Suppression
- High Stability and Reliability
- Compatible with Telcordia GR-1312-CORE
- Easy to use: LCD Display, Output Power Adjustment Knob
- RS232 Port for control and communication
Applications
- Receiver Protection
- Fiber Optical, Telcom R and D Lab Test
- DWDM Transmission Systems
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Model# | ACPGAT01 | |
| Wavelength Range | nm | 1540 ~ 1565 |
| Saturated Output Power | dBm | 30 (Max.) (Optional) |
| Output Power Adjustable Range | dB | 10 (Max.) |
| Input power | dBm | -3 (Min.), +10(Max.) |
| PER | dB | 20 (Typ.) |
| Noise Figure | dB | 5 (Typ.), 5.5(Max.) |
| Output Power Stability | dB | ±0.05 (Typ.), ±0.1 (Max.) |
| Return Loss | dB | 45 (Min) |
| Polarization Mode Dispersion | ps | 0.5 (Max.) |
| Polarization Dependent Gain | dB | 0.3 (Max.) |
| Fiber Type | PM | |
| Interface | FC/APC (Optional) | |
| Power Consumption | W | 30 (Max.) |
| Power Supply | V | 100 ~ 240 |
| Working Temperature | °C | -5 ~ +60 |
| Working Humidity | % | 10 ~ 85 |
| Storage Temperature | °C | -40 ~ +85 |
| Storage Relative Humidity | % | 5 ~ 95 |
| Package Dimensions (HxWxD) | mm | 112 x 280 x 260 |
