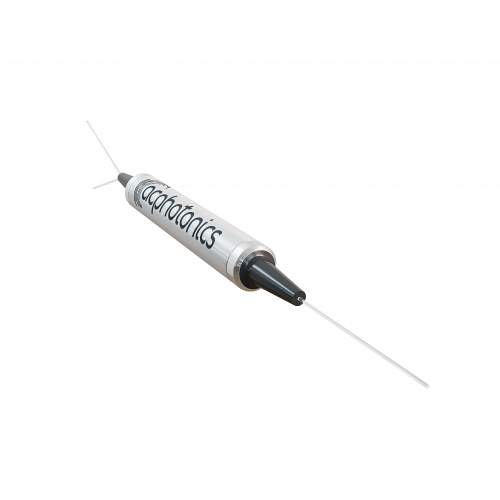

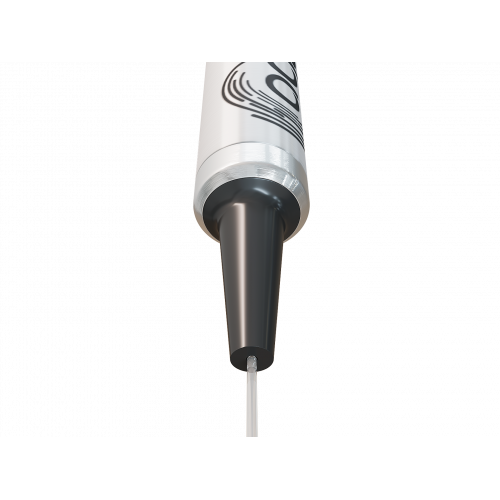

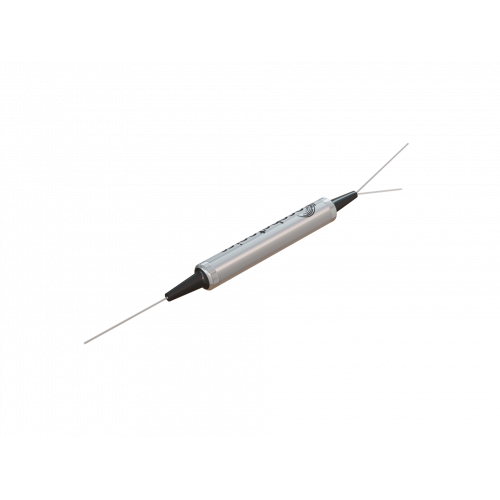

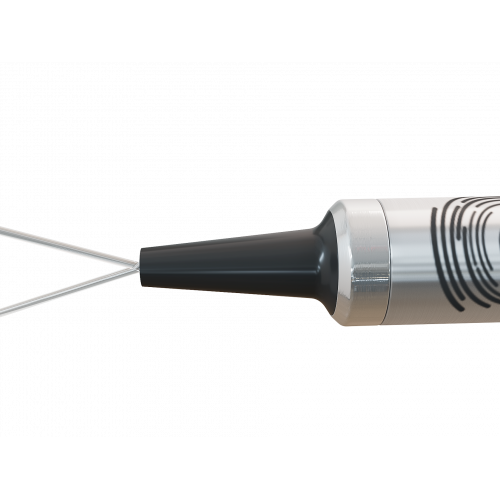

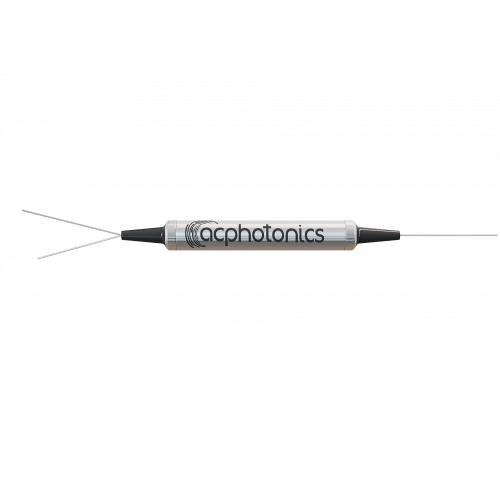

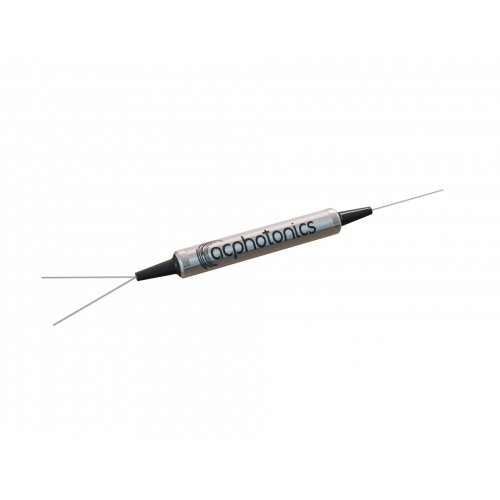

C and L-Band Supervisory Channel Micro-Optic Wavelength Division Multiplexer
ACP’s C Band Supervisory Channel (1510nm~1520nm) Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
All AC Photonics' products are Telcordia qualification tested.
Features
- Wide Operating Wavelength Range
- Low Insertion Loss
- Ultra Flat Wide Passband
- High Channel Isolation
- High Stability and Reliability
- Epoxy Free Optical Path
Applications
- Fiber Optical Amplifier
Specifications
Parameter | Unit | Specifications | |
---|---|---|---|
Type | C-Band | L-Band | |
Wavelength Range | nm |
Pass Channel: 1500 to 1520 Reflect Channel: 1529 to 1563 |
Pass Channel: 1620 to 1630 Reflect Channel: 1570 to 1605 |
Insertion loss | dB |
Pass Channel: ≤ 0.60 Reflect Channel: ≤ 0.40 |
|
Insertion Loss Variation | dB | ≤ 0.30 | |
Channel Isolation | dB |
Pass Channel: ≥ 30 Reflect Channel: ≥ 12 |
|
Insertion Loss Temperature Sensitivity | dB/°C | ≤ 0.003 | |
Polarization Dependent Loss | dB | ≤ 0.10 | |
Polarization Mode Dispersion | ps | ≤ 0.10 | |
Directivity | dB | ≥ 55 | |
Return Loss | dB | ≥ 50 | |
Optical Power | mW | ≤ 300 | |
Operating Temperature | °C | 0 to +70 | |
Storage Temperature | °C | - 40 to +85 | |
Package Dimensions* | mm |
A= Standard, Ø5.5xL34 (250um fiber) Ø5.5xL38 (900um fiber) |
All values referenced are without connector.
