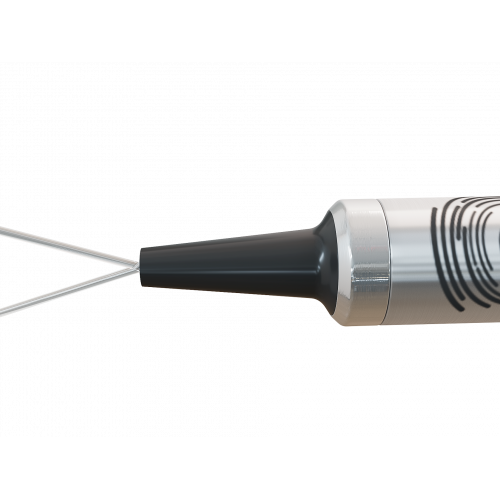

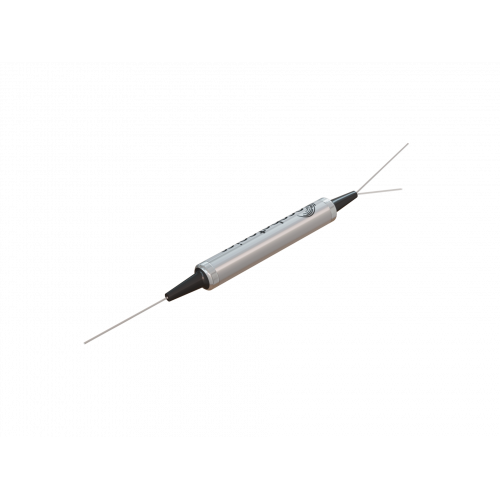

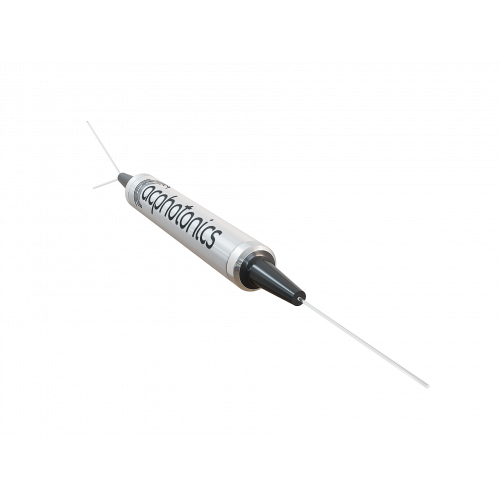

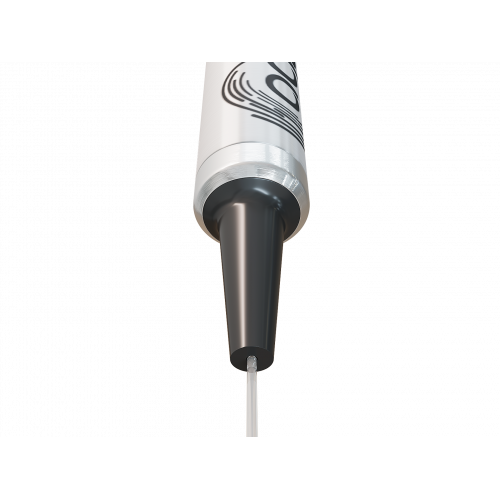

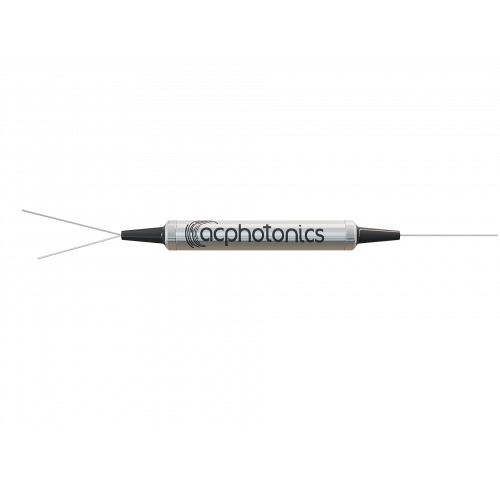

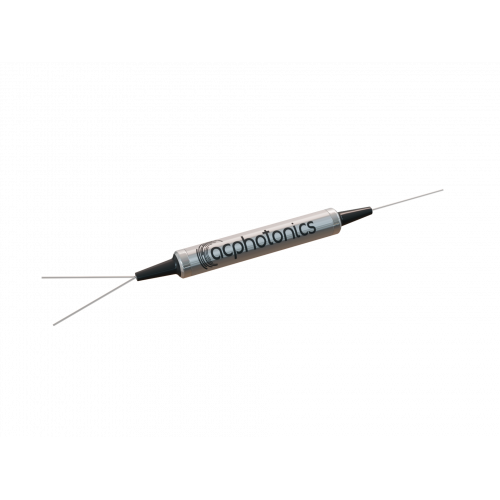

C and L-Band Red-Blue Pass Micro-Optic Wavelength Division Multiplexer
ACP’s Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path .
All AC Photonics' products are Telcordia qualification tested.
Features
- Wide Operating Wavelength Range
- Low Insertion Loss
- Ultra Flat Wide Passband
- High Channel Isolation
- High Stability and Reliability
- Epoxy Free Optical Path
Applications
- Epoxy Free Optical Path
- WDM System
- Transmitters and Fiber Lasers
- Fiber Optical Amplifier
- Fiberoptic Instruments
Specifications
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Type | C-Band | L-Band | |
| Wavelength Range | nm |
Pass Channel: 1547 to 1561 (or 1530 to 1543.2) Reflect Channel: 1530 to 1543.2 (or 1547 to 1561) |
Pass Channel: 1589 to 1603 (or 1570 to 1584) Reflect Channel: 1570 to 1584 (or 1589 to 1603) |
| Insertion loss | dB |
Pass Channel: ≤ 0.60 Reflect Channel: ≤ 0.40 |
|
| Insertion Loss Variation | dB | ≤ 0.30 | |
| Channel Isolation | dB |
Pass Channel: ≥ 30 Reflect Channel: ≥ 12 |
|
| Insertion Loss Temperature Sensitivity | dB/°C | ≤ 0.003 | |
| Polarization Dependent Loss | dB | ≤ 0.10 | |
| Polarization Mode Dispersion | ps | ≤ 0.10 | |
| Directivity | dB | ≥ 60 | |
| Return Loss | dB | ≥ 50 | |
| Optical Power | mW | ≤ 300 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions* | mm |
A= Standard, Ø5.5xL34 (250um fiber) Ø5.5xL38 (900um fiber) |
|
All values referenced are without connector.
