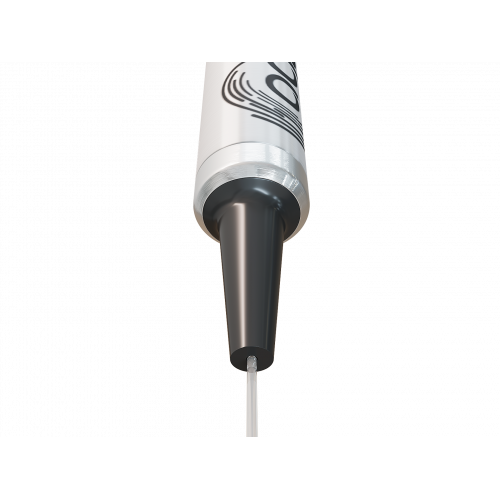

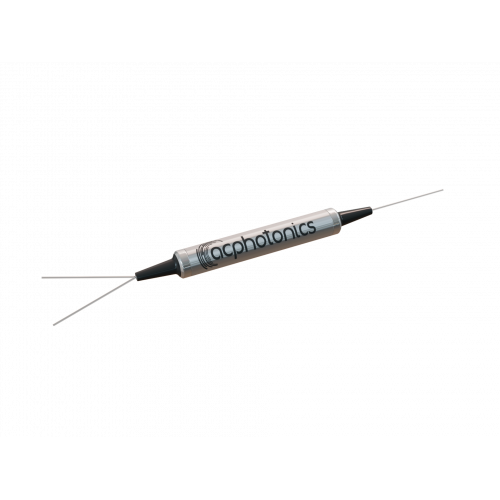

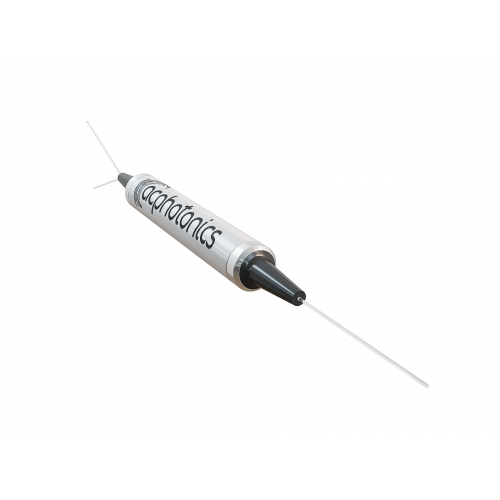

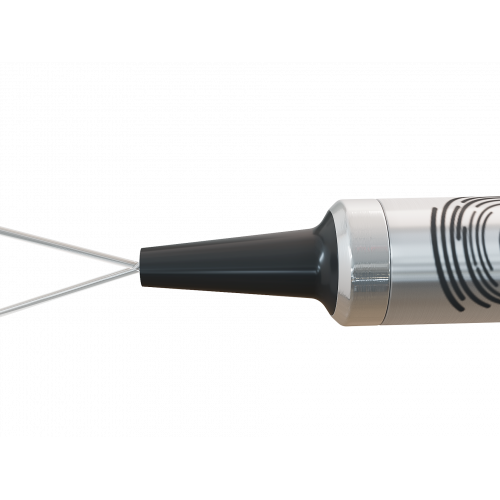

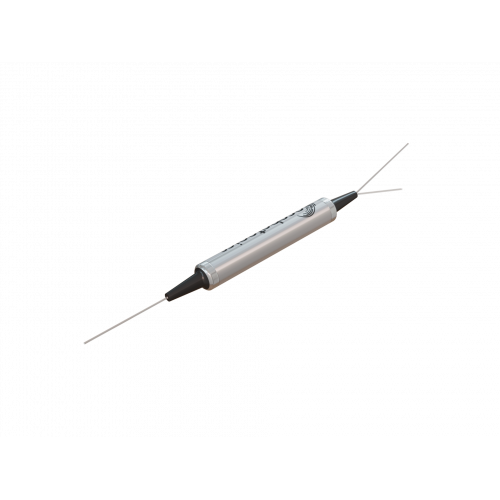

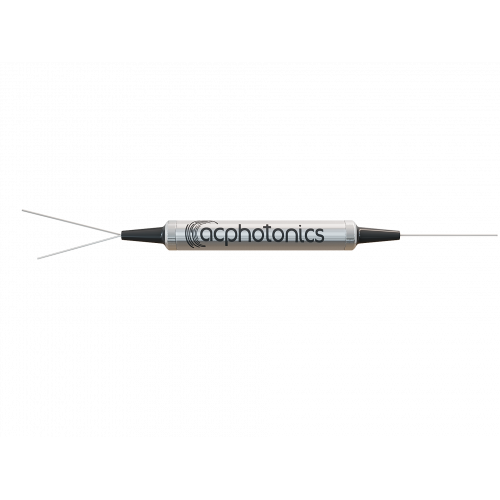

1310/1550nm Micro-Optic Wavelength Division Multiplexer

1310/1550nm Micro-Optic Wavelength Division Multiplexer

ACP’s Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path .

All AC Photonics' products are Telcordia qualification tested.

Features
  • Wide Operating Wavelength Range
  • Low Insertion Loss
  • Ultra Flat Wide Passband
  • High Channel Isolation
  • High Stability and Reliability
  • Epoxy Free Optical Path
Applications
  • System Monitoring
  • WDM System
  • Transmitters and Fiber Lasers
  • Fiber Optical Amplifier
  • Fiberoptic Instruments

Specifications

Parameter Unit Specifications
Type Standard High Isolation
Wavelength Range nm Pass Channel: 1520 to 1600 (or 1250 to 1350)
Reflect Channel: 1250 to 1350 (or 1520 to 1600)
Insertion loss dB Pass Channel: ≤ 0.60
Reflect Channel: ≤ 0.40
Pass Channel: ≤ 0.80
Reflect Channel: ≤ 0.80
Insertion Loss Variation dB ≤ 0.30 ≤ 0.30
Channel Isolation dB Pass Channel: ≥ 30
Reflect Channel: ≥ 12
Pass Channel: ≥ 45
Reflect Channel: ≥ 45
Insertion Loss Temperature Sensitivity dB/°C ≤ 0.003
Polarization Dependent Loss dB ≤ 0.10
Polarization Mode Dispersion ps ≤ 0.10
Directivity dB ≥ 55 ≥ 50
Return Loss dB ≥ 50
Optical Power mW ≤ 300
Operating Temperature °C 0 to +70
Storage Temperature °C - 40 to +85
Package Dimensions* mm A= Standard, Ø5.5xL34 (250um fiber)
Ø5.5xL38 (900um fiber)

Note:

*Compact package is available.

All values referenced are without connector.
