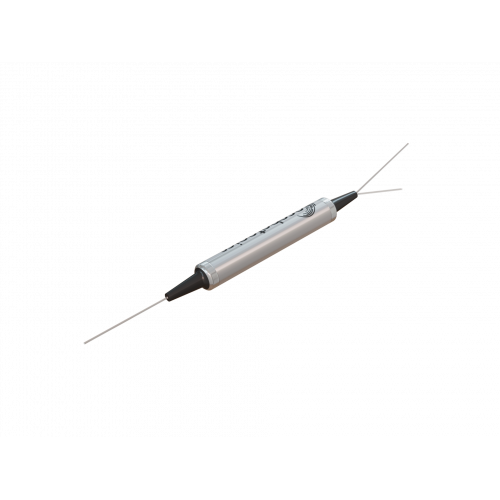

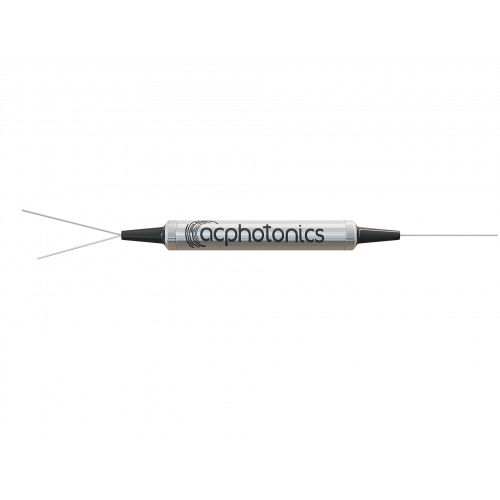

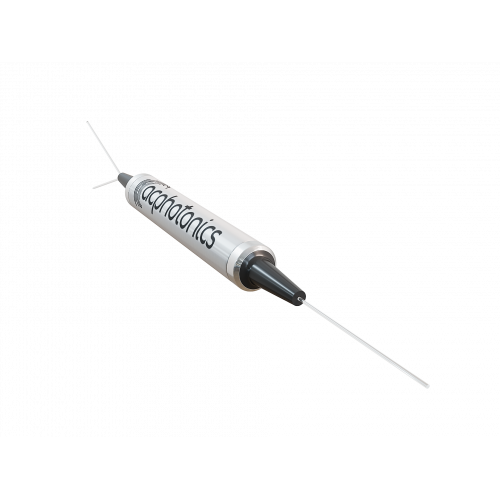

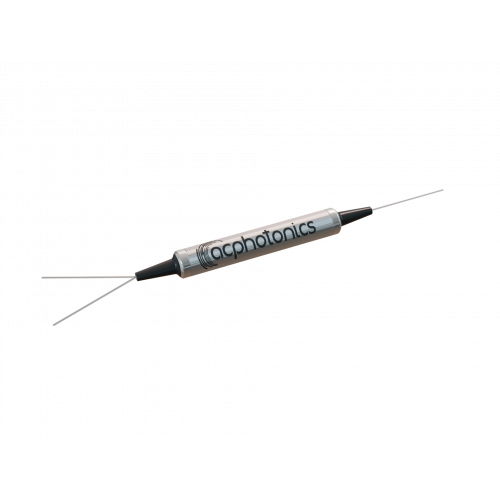

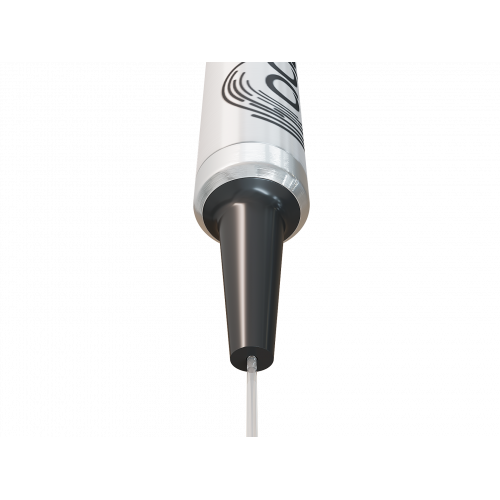

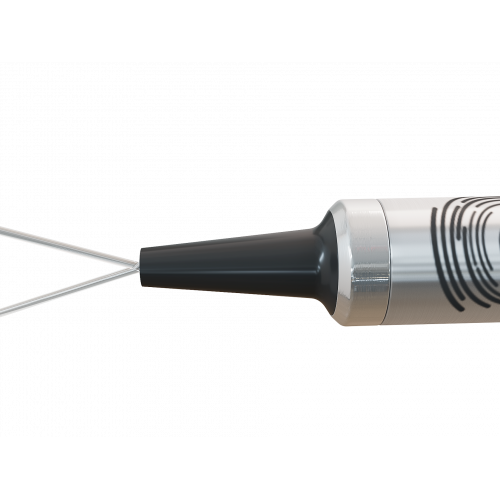

980-1550nm Micro-Optic Wavelength Division Multiplexer
ACP’s Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path .
All AC Photonics' products are Telcordia qualification tested.
Features
- Wide Operating Wavelength Range
- Low Insertion Loss
- Ultra Flat Wide Passband
- High Channel Isolation
- High Stability and Reliability
- Epoxy Free Optical Path
Applications
- System Monitoring
- WDM System
- Transmitters and Fiber Lasers
- Fiber Optical Amplifier
- Fiberoptic Instruments
Specifications
Parameter | Unit | Specifications |
---|---|---|
Pass Channel Wavelength Range | nm | 1520 - 1600 |
Reflect Channel Wavelength Range | nm | 960 - 1000 |
Insertion Loss Reflect Channel | dB | ≤ 0.60 |
Insertion Loss Pass Channel | dB | ≤ 1.0 |
Insertion Loss Variation | dB | ≤ 0.30 |
Channel Isolation Reflect Channel | dB | ≥ 18 |
Channel Isolation Pass Channel | dB | ≥ 30 |
Insertion Loss Temperature Sensitivity | dB/°C | ≤ 0.003 |
Polarization Dependent Loss | dB | ≤ 0.10 |
Polarization Mode Dispersion | ps | ≤ 0.10 |
Directivity | dB | ≥ 55 |
Return Loss | dB | ≥ 50 |
Optical Power | mW | ≤ 300 |
Operating Temperature | °C | 0 to +70 |
Storage Temperature | °C | - 40 to +85 |
Fiber Type (Pump and Common port) | HI1060, HI1060Flex or ClearLite980-16 | |
Fiber Type (Signal port) | SMF-28, SMF-28 Ultra or ClearCurve ZBL | |
Package Dimensions | mm |
A= Standard, Ø5.5xL34 (250um fiber) Ø5.5xL38 (900um fiber) |
All values referenced are without connector.
