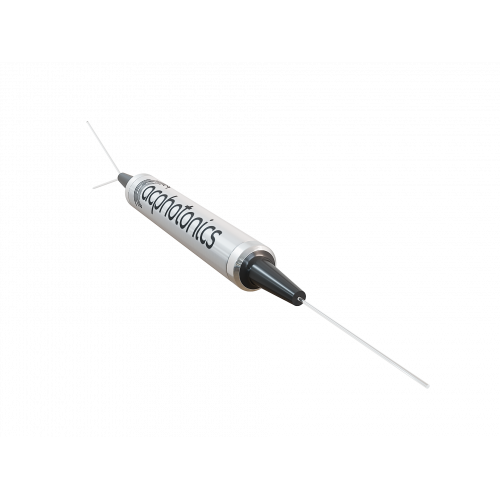

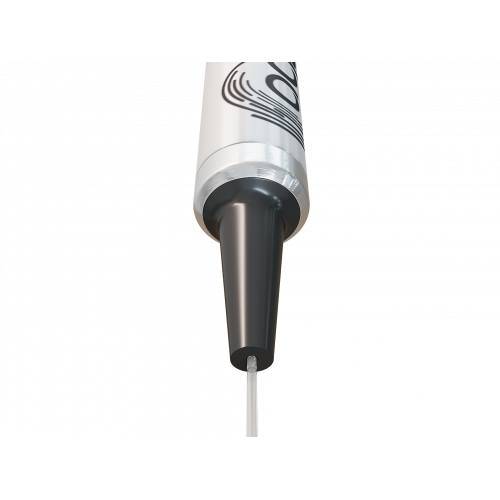

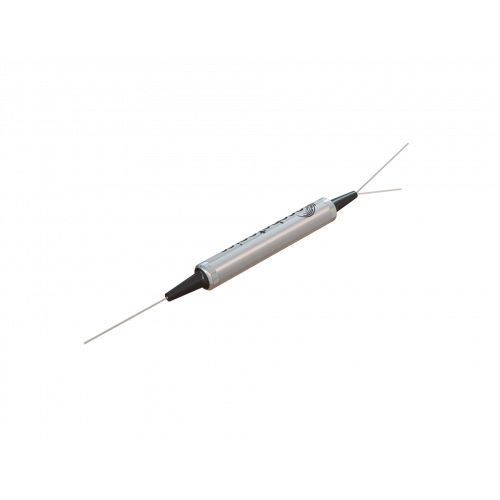

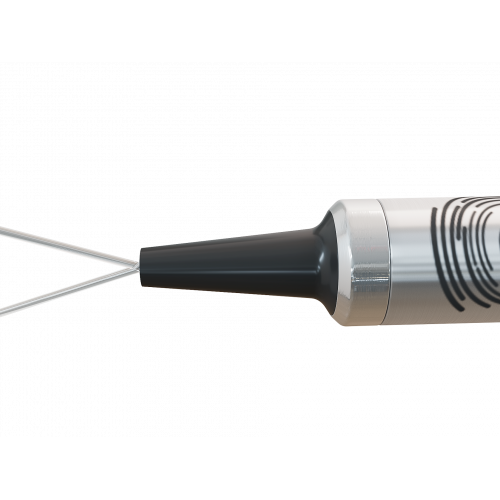

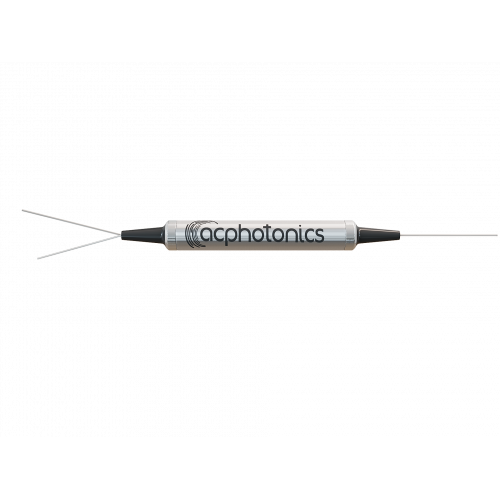

1480-1550nm Micro-Optic Wavelength Division Multiplexer

1480-1550nm Micro-Optic Wavelength Division Multiplexer

ACP’s Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.

All AC Photonics' products are Telcordia qualification tested.

Features
  • Wide Operating Wavelength Range
  • Low Insertion Loss
  • Ultra Flat Wide Passband
  • High Channel Isolation
  • High Stability and Reliability
  • Epoxy Free Optical Path
Applications
  • System Monitoring
  • WDM System
  • Transmitters and Fiber Lasers
  • Fiber Optical Amplifier
  • Fiberoptic Instruments

Specifications

Parameter Unit Specifications
Pass Channel Wavelength Range nm 1530 to 1580 (or 1440 to 1490)
Reflect Channel Wavelength Range nm 1440 to 1490 (or 1530 to 1580)
Insertion Loss Reflect Channel dB ≤ 0.40
Insertion Loss Pass Channel dB ≤ 0.60
Insertion Loss Variation dB ≤ 0.30
Channel Isolation Reflect Channel dB ≥ 12
Channel Isolation Pass Channel dB ≥ 30
Insertion Loss Temperature Sensitivity dB/°C ≤ 0.003
Polarization Dependent Loss dB ≤ 0.10
Polarization Mode Dispersion ps ≤ 0.10
Directivity dB ≥ 55
Return Loss dB ≥ 50
Optical Power mW ≤ 300
Operating Temperature °C 0 to +70
Storage Temperature °C - 40 to +85
Package Dimensions mm A= Standard, Ø5.5xL34 (250um fiber)
Ø5.5xL38 (900um fiber)

All values referenced are without connector.
