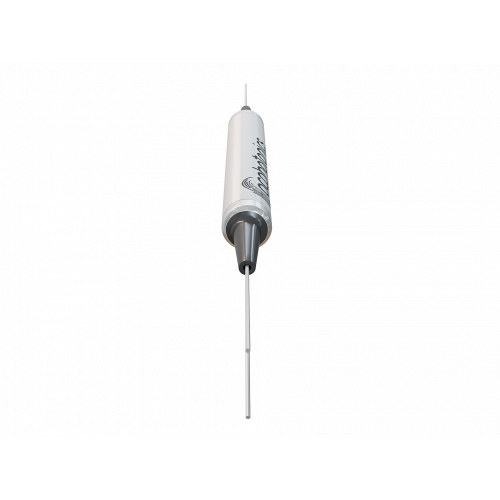

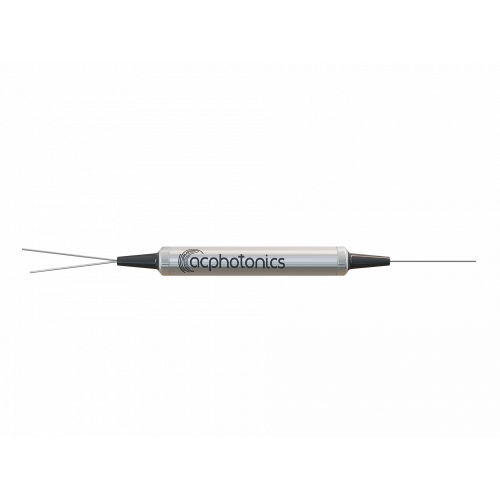

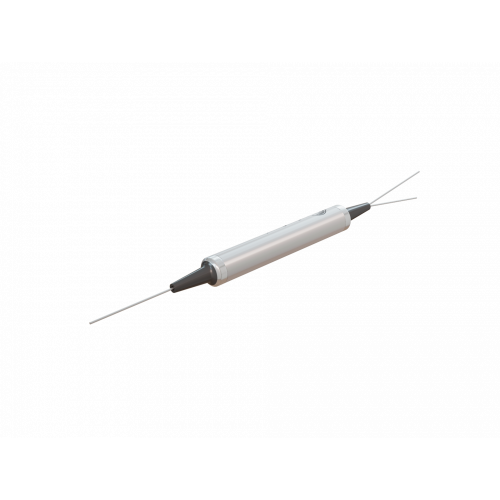

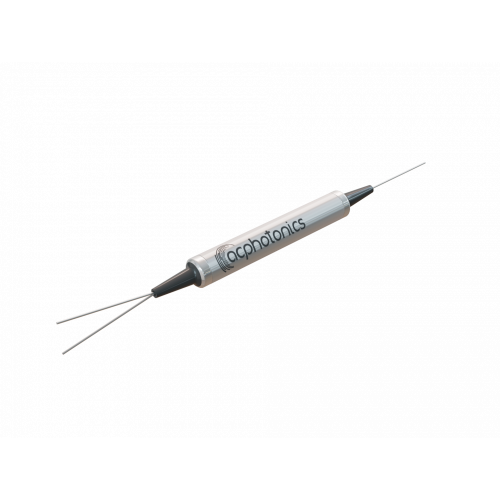

PM 1310-1550nm and 1480-1550nm MWDM

PM 1310-1550nm and 1480-1550nm MWDM

All AC Photonics' products are Telcordia qualification tested.


Download Download: Datasheet in PDF
Features
  • Wide Operating Wavelength Range
  • Low Insertion loss
  • Ultra Flat Wide Passband
  • High Channel Isolation
  • High Reliability and Stability
  • Epoxy Free Optical Path
Applications
  • System Monitoring
  • WDM System
  • Transmitters and Fiberlasers
  • Fiberoptic Amplifiers
  • Fiberoptic Instruments

Specifications

Parameter Unit Specifications
Type 1310/1550nm 1480/1550nm
Wavelength Range nm Pass Channel*: 1520 to 1600 (or 1250 to 1350)
Reflect Channel*: 1250 to 1350 (or 1520 to 1600) 		Pass Channel*: 1530 to 1580 (or 1440 to 1590)
Reflect Channel*: 1440 to 1590 (or 1530 to 1580)
Insertion loss dB Pass Channel: ≤ 0.60
Reflect Channel: ≤ 0.40
Wavelength Dependent Loss dB ≤ 0.30
Channel Isolation dB Pass Channel: ≥ 30
Reflect Channel: ≥ 12
Insertion Loss Temperature Sensitivity dB/°C ≤ 0.003
Polarization Extinction Ratio dB ≥ 18
Working Axis See Ordering information
Fiber Type See Ordering information
Directivity dB ≥ 55
Return Loss dB ≥ 50
Optical Power mW ≤ 300
Operating Temperature °C 0 to +70
Storage Temperature °C - 40 to +85
Package Dimensions mm A= Standard, Ø5.5xL34 (250um fiber)
Ø5.5xL38 (900um fiber)

Note:

*Other wavelength are available upon request.

All values referenced are without connector.
