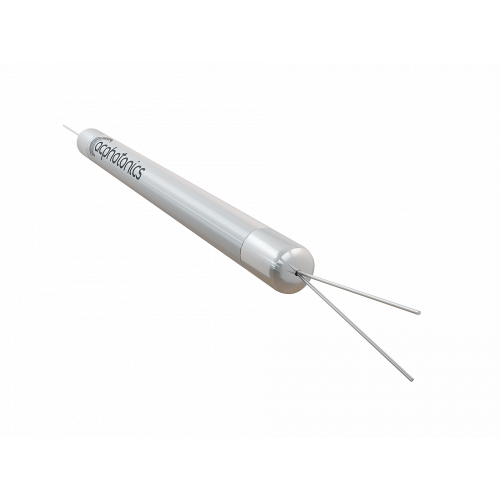

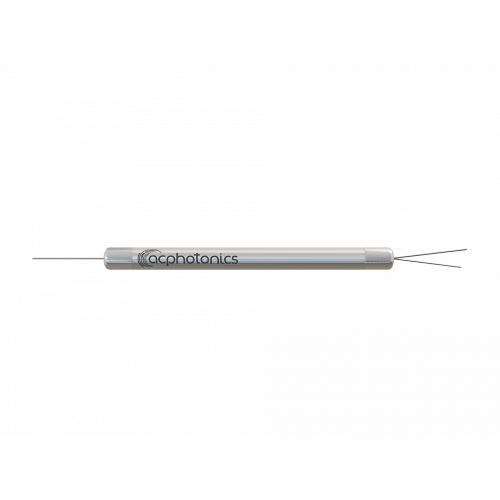

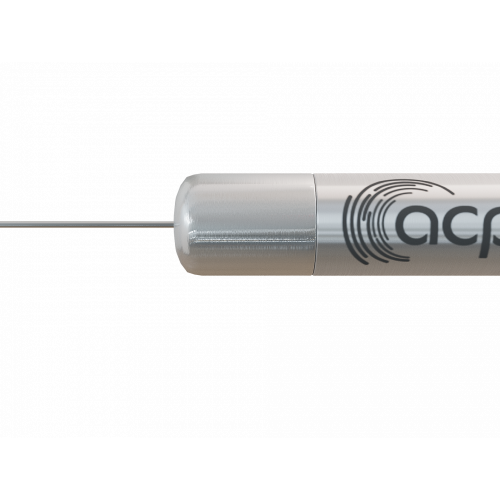

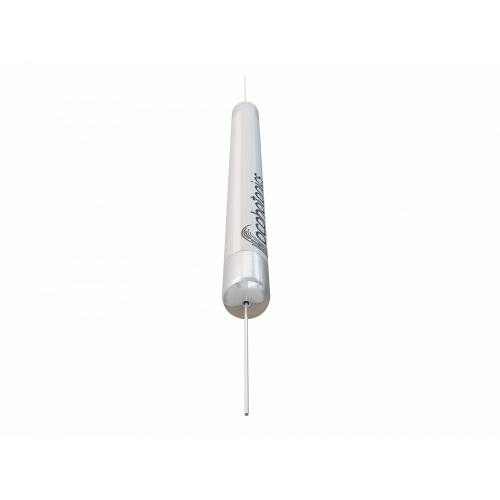

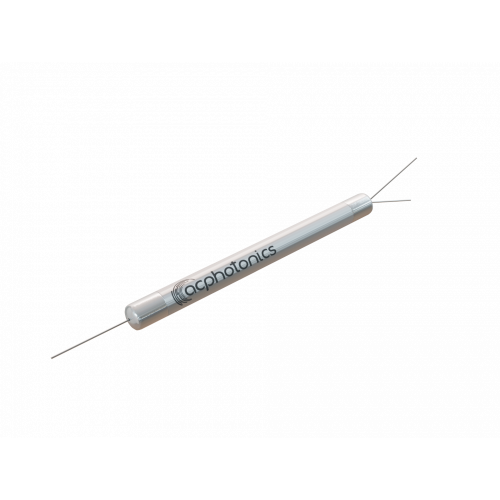

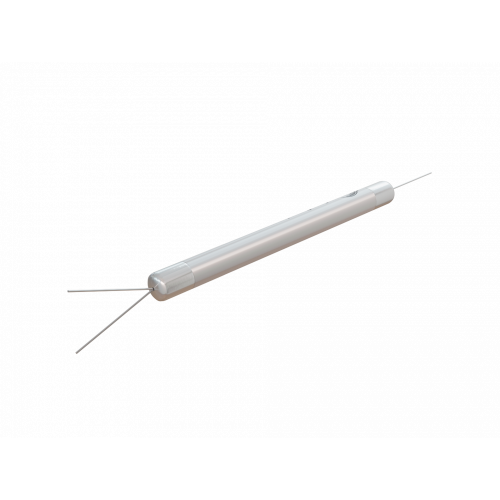

PM Fused WDM for Amplifier
Features
- Low Insertion Loss
- High Reliability and Stability
- Compact Size
- Epoxy Free Optical Path
Applications
- Erbium Doped Fiber Amplifiers (EDFA)
Specifications
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Type | 1550/980nm | 1550/1064nm | |
| Operating Wavelength | nm |
Signal port: 1550±15 Pump port: 980±10 |
Signal port: 1550±15 Pump port: 1064±10 |
| Insertion Loss | dB |
Signal port: ≤0.70 Pump port: ≤0.50 |
|
| Isolation | dB | ≥ 18 | |
| Extinction Ratio | dB | ≥ 18 | |
| Working Axis | Both Axes | ||
| Return Loss | dB | ≥ 50 | |
| Directivity | dB | ≥ 55 | |
| Fiber type | See Ordering information | ||
| Optical Power | mW | ≤ 300 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions | mm |
A= Standard, Ø3.0xL54 for 250um fiber Ø3.0xL60 for 900um fiber |
|
All values referenced are without connector.
