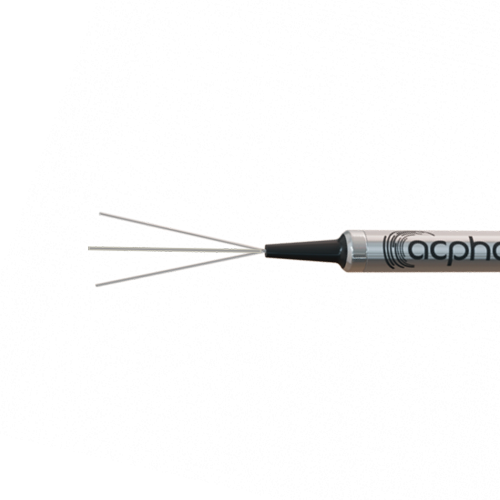

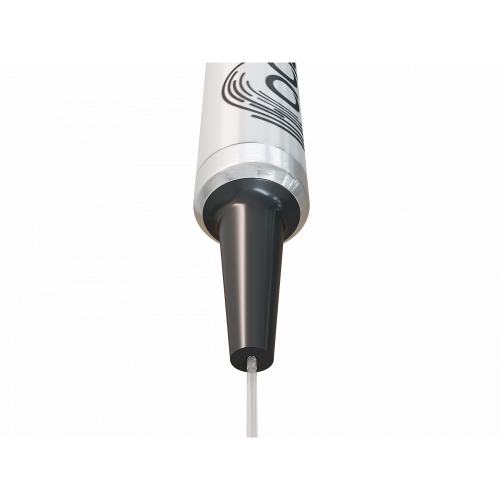

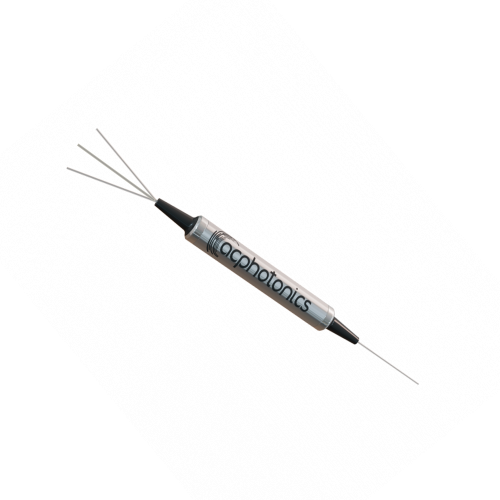

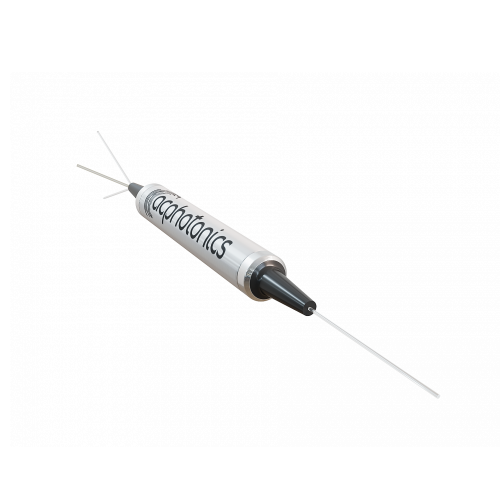

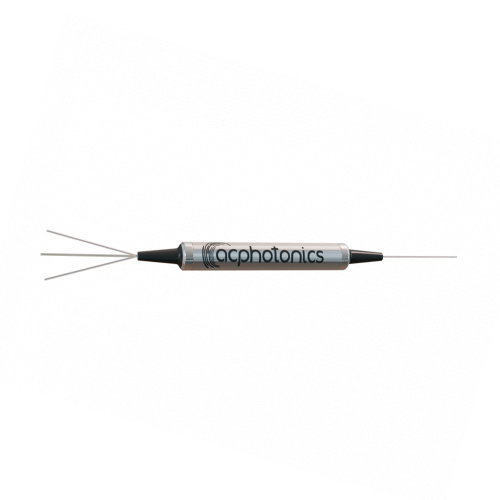

1x3 Triplexer WDM Coupler for FTTH

1x3 Triplexer WDM Coupler for FTTH


Features
  • Low Insertion Loss
  • Flat Spectral Gain
  • High Stability and Reliability
  • Epoxy Free Optical Path
Applications
  • FTTX Application
  • WDM Network System

Specifications

Parameter Unit Specifications
Operating Wavelength nm 1310 ± 50, 1490 ± 10 and 1550 ± 10
Insertion Loss dB Pass Port: ≤ 0.7 @1490nm
Reflect Port 1: ≤ 0.5 @ 1310nm
Reflect Port 2: ≤ 0.8 @ 1550nm
Channel Isolation dB Pass Port: ≥ 15 @1490nm
Reflect Port 1: ≥ 40 @ 1310nm
Reflect Port 2: ≥ 25 @ 1550nm
Insertion Loss Temperature Sensitivity dB/°C ≤ 0.005
Polarization Dependent Loss dB ≤ 0.10
Polarization Mode Dispersion ps ≤ 0.10
Directivity dB ≥ 50
Return Loss dB ≥ 55
Optical Power mW ≤ 300
Operating Temperature °C 0 to +70
Storage Temperature °C - 40 to +85
Package Dimensions mm A= Standard, Ø5.5xL34 (250um fiber)
Ø5.5xL38 (900um fiber)

All values referenced are without connector.
