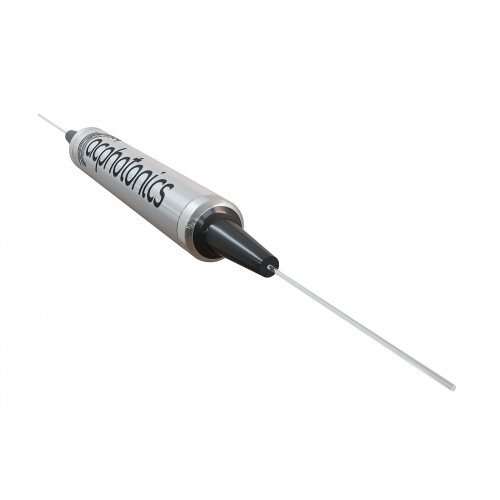

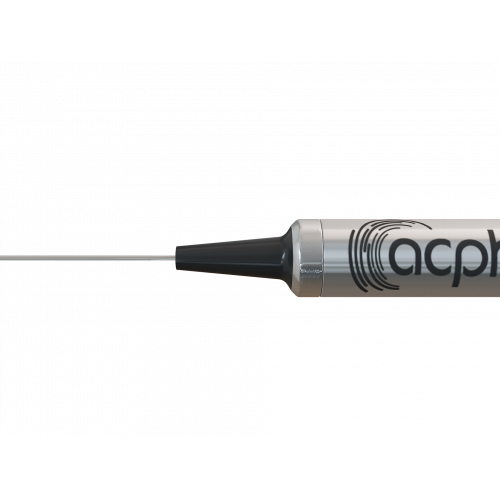

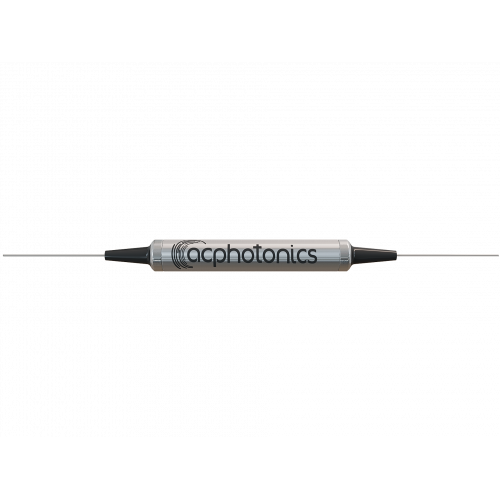

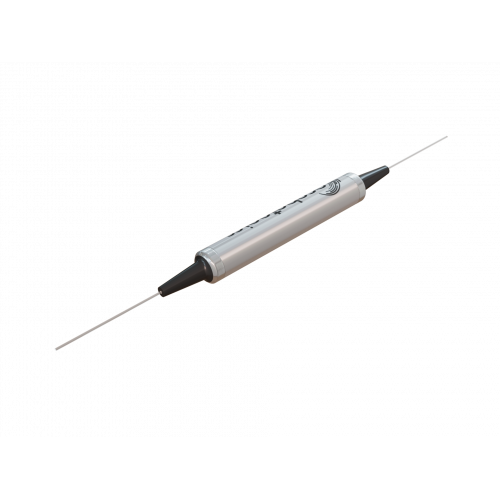

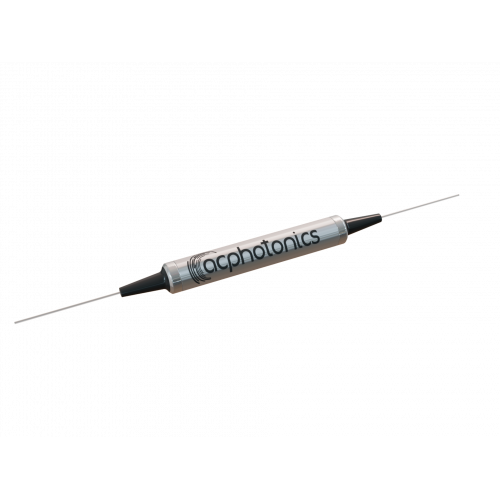

Band Pass-Edge Pass Filter
ACP’s Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path .
Features
- Wide Operating Wavelength Range
- Low Insertion Loss
- Flat Spectral Gain
- High Stability and Reliability
- Epoxy Free Optical Path
Applications
- DWDM System
Specifications
Parameter | Unit | Specifications | |
---|---|---|---|
Type | Band Pass | Edge Pass | |
Pass Channel Wavelength Range | nm | 1570 - 1609 | 1528 - 1565 |
Reflect Channel Wavelength Range | nm | 1400 - 1560 + 1615 - 1640 | 1450 - 1490 |
Insertion Loss | dB | ≤ 0.6 (Max), 0.4(Typ.) | |
Insertion Loss Variation | dB | ≤ 0.25 | |
Rejection Channel Isolation | dB | ≥ 25 | |
Polarization Dependent Loss | dB | ≤ 0.10 | |
Return Loss | dB | ≥ 50 | |
Optical Power | mW | ≤ 500 | |
Operating Temperature | °C | 0 to +70 | |
Storage Temperature | °C | - 40 to +85 | |
Package Dimensions | mm |
A= Standard, Ø5.5xL34 (250um fiber) Ø5.5xL38 (900um fiber) |
All values referenced are without connector.
