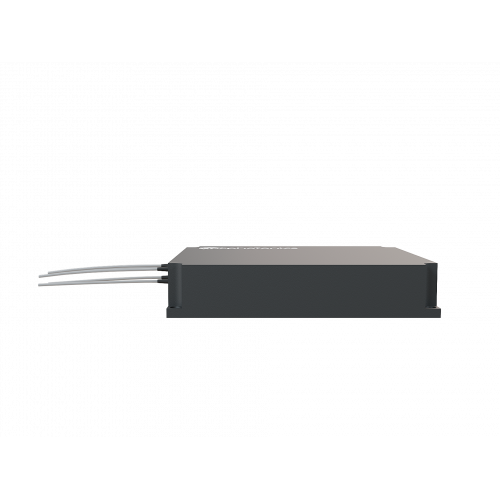

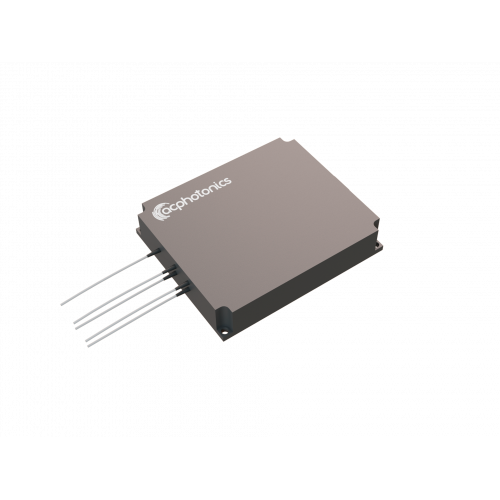

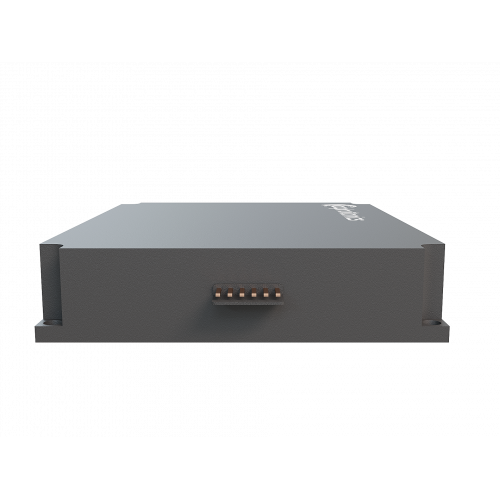

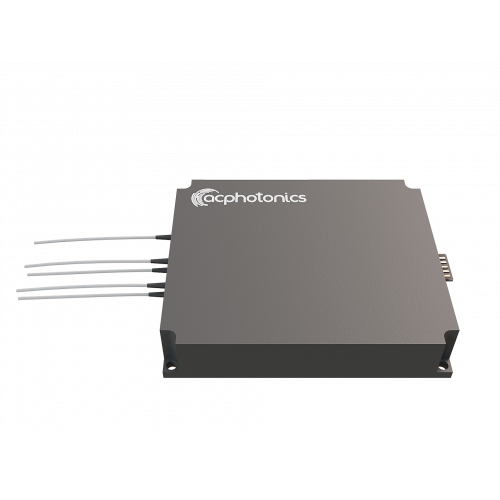

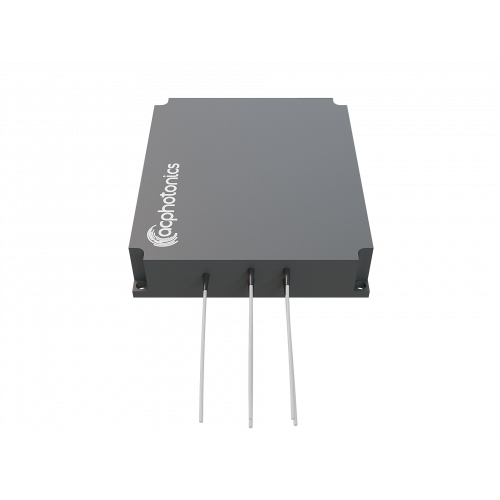

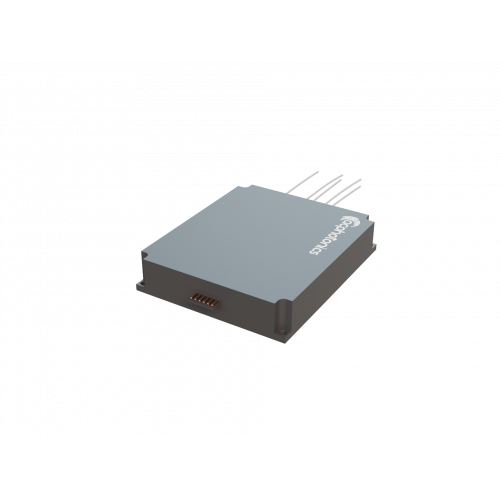

1x4 Solid-State SM Fiberoptic Switch
ACP’s SW Series switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using patent pending non-mechanical proprietary configurations and activated via an electrical control signal. The solid-state operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The SW fiberoptic switches are true switching solutions for optical networking applications.
Features
- Fast Switching Speed
- Ultra-High Reliability
- Latching
- Highly Repeatability
- Low Cost
Applications
- Optical Network Protection/ Restoration
- Optical Signal Routing
- Configurable Optical Add/Drop
- Transmitter and Receiver Protection
- Network Test Systems
- Instrumentation
Specifications
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Port Configuration | Unidirectional | Bidirectional | |
| Operating Wavelength | nm | 1525 - 1565 or custom wavelengths | |
| Insertion Loss | dB | ≤ 2.2 | ≤ 2.4 |
| Polarization Dependent Loss | dB | ≤ 0.3 | |
| Polarization Mode Dispersion | ps | ≤ 0.2 | |
| Channel Cross Talk | dB | ≥ 40 | ≥ 35 |
| Return Loss | dB | ≥ 40 | ≥ 30 |
| Repetability | dB | ± 0.01 | |
| Switching Speed | us | Typ. :200 ~ 400 | |
| Durability (Cycles) | Billion | ≥ 30 | |
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | - 5 to +70 | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions (LxWxH) | mm | 90x76x17.5 | |
All values referenced are without connector.
