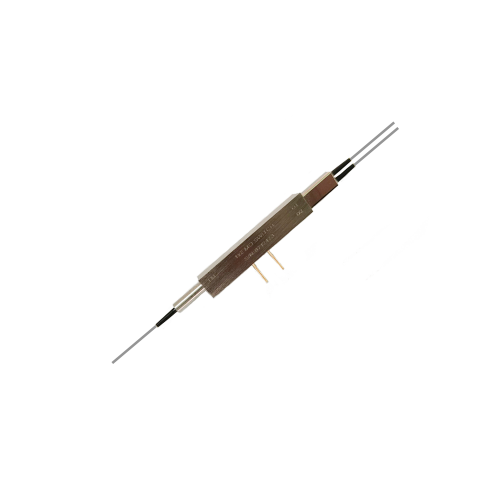

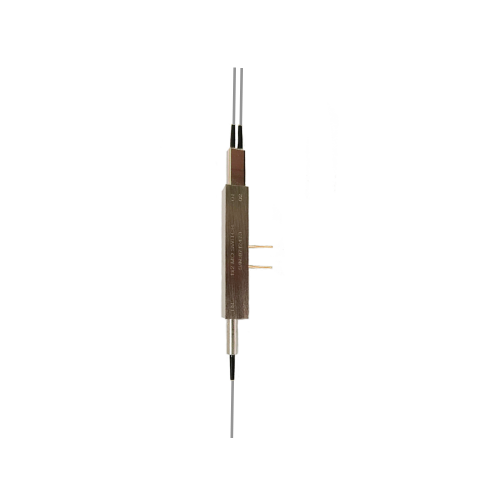

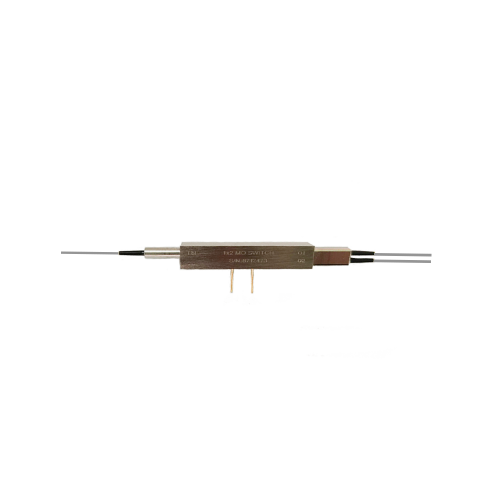

1x2 Solid-State PM Fiberoptic Switch
ACP’s SW Series switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using patent pending non-mechanical proprietary configurations and activated via an electrical control signal. The solid-state operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The SW fiberoptic switches are true switching solutions for optical networking applications.
Features
- Fast Switching Speed
- Ultra-High Reliability
- Latching
- Highly Repeatability
- Low Cost
Applications
- Optical Network Protection / Restoration
- Optical Signal Routing
- Configurable Optical Add / Drop
- Transmitter and Receiver Protection
- Network Test Systems
- Instrumentation
Specifications
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Port Configuration | Unidirectional | Bidirectional | |
| Operating Wavelength | nm | 1525 - 1565 or custom wavelengths | |
| Insertion Loss | dB | ≤ 1.1 | |
| Wavelength Dependent Loss (WDL) | dB | ≤ 0.3 | |
| Temperature Dependent Loss (TDL) | dB | ≤ 0.3 | |
| Channel Cross Talk | dB | ≥ 40 | |
| Return Loss | dB | ≥ 40 | |
| Extinction Ratio (ER) | dB | ≥ 18 | |
| Repetability | dB | ± 0.01 | |
| Switching Speed | us |
Regular: 50 ~ 200 Ultra-fast: 5 ~ 20 |
|
| Durability (Cycles) | Billion |
Regular: ≥ 100 Ultra-fast: ≥ 1,000 |
|
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | - 5 to +70 | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions (LxWxH) | mm | 32.8x8x7 (Including end cap 51.8x8x7) | |
All values referenced are without connector.
