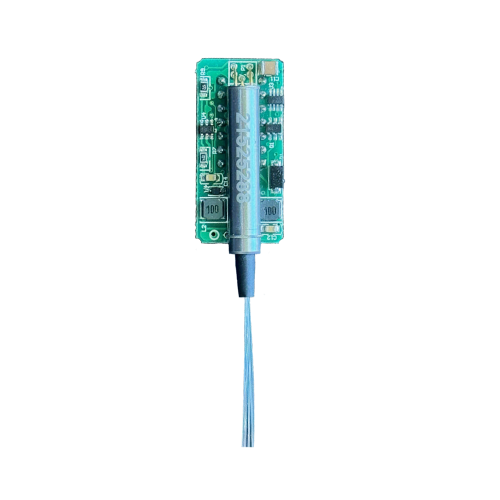

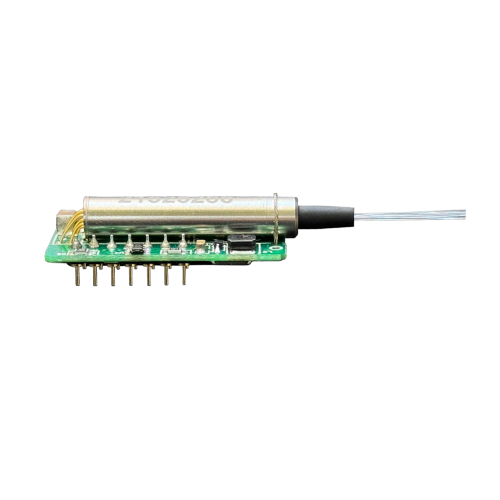

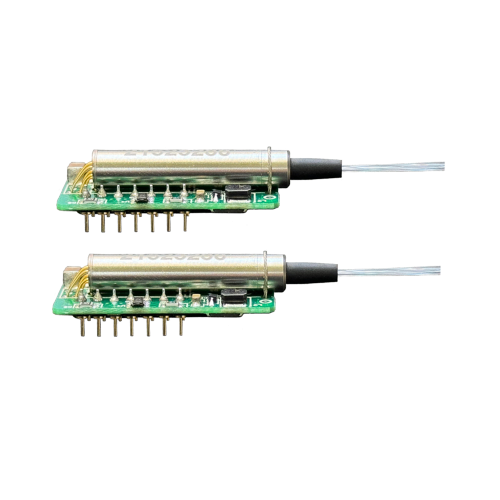

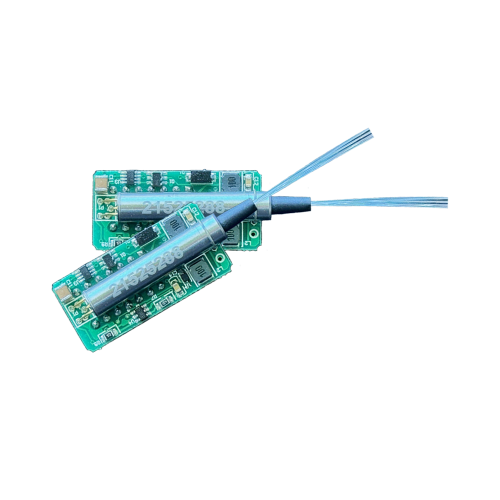

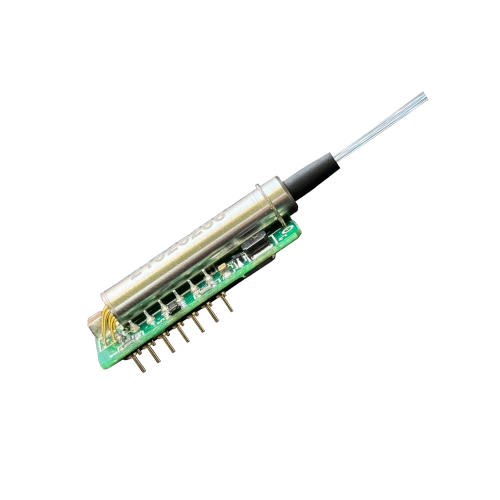

1x8 MEMS SM Fiberoptic Switch
ACP 1avelengthxN MEMS optical switch is based on low-loss MEMS chips with tilting mirrors. The MEMS switch is extremely stable and reliable, covered wide wavelength from 1260nm to 1670nm. The intelligent management of the control system realizes the optical switching from COM port to any channel.
Features
- DWDM Networks
- Channel Monitor
- R&D in Laboratory
Applications
- Small Package
- High Stability, High Reliability
- Non-Latching
Specifications
Parameter | Unit | Specifications | ||
---|---|---|---|---|
Operating Windows | Single | Dual | Full Band | |
Operating Wavelength | nm | 1310 or 1550 ± 40 | 1310 / 1550 ± 40 | 1260 ~ 1650 |
Insertion Loss (Typical) | dB | ≤ 0.60 | ≤ 0.80 | ≤ 1.4 |
Insertion Loss (Maximum) | dB | ≤ 0.80 | ≤ 1.0 | ≤ 1.6 |
Wavelength Dependent Loss (WDL) at CWL+/-20nm | dB | ≤ 0.30 | ||
Polarization Dependent Loss | dB | ≤ 0.15 | ||
Channel Cross Talk | dB | ≥ 45 | ||
Return Loss | dB | ≥ 50 | ||
Repeatability | dB | ± 0.05 | ||
Switching Speed | ms | ≤ 20 | ||
Durability (Cycles) | 10⁹ | |||
Optical Power | mW | ≤ 500 | ||
Power Supply | V | 4.75 ~ 12.5 | ||
Control Interface | TTL or I²C | |||
Operating Temperature | °C | -10 to +70 | ||
Storage Temperature | °C | - 40 to +85 | ||
Package Dimensions | mm | A=34(L)x16(W)x9.2(H) |
All values referenced are without connector.
