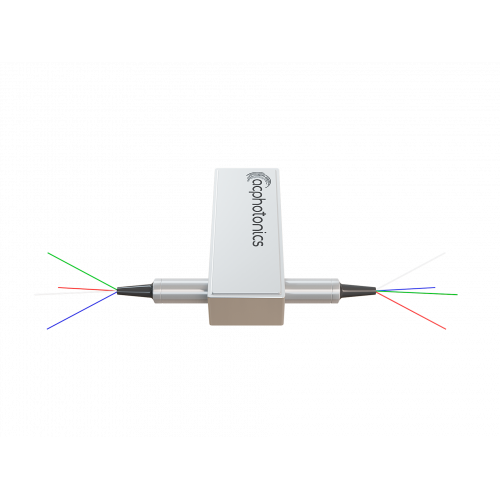

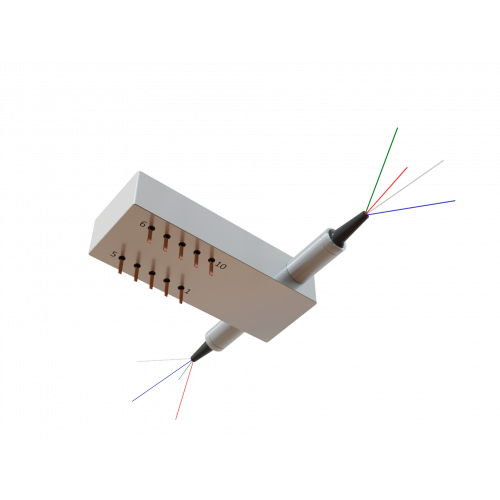

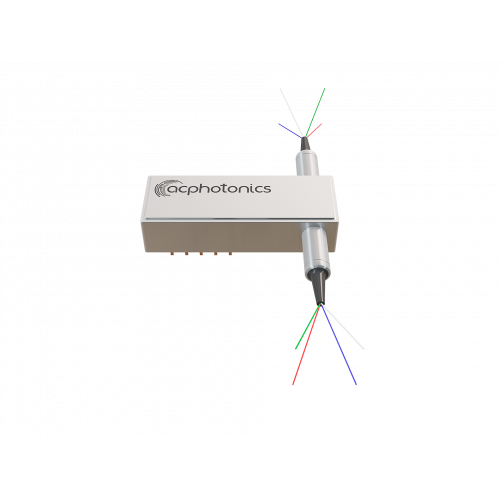

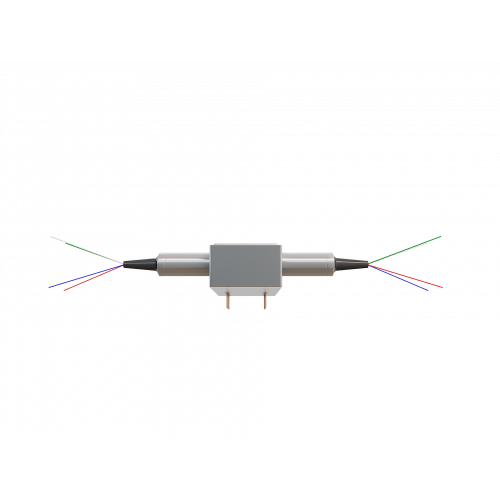

Dual 2x2 Multi-mode Mechanical Fiberoptic Switch

Dual 2x2 Multi-mode Mechanical Fiberoptic Switch

ACP’s MMS Series switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal. The Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MS fiberoptic switches are true switching solution for optical networking applications.

Features
  • Unmatched Low Cost
  • Low Insertion Loss
  • High Channel Isolation
  • Highly Stable and Reliable
  • Epoxy Free Optical Path
  • Latching or Non-Latching
Applications
  • Optical Netrwork Protection/Restoration
  • Optical Signal Routing
  • Configurable Optical Add/Drop
  • Transmitter and Receiver Protection
  • Network Test Systems
  • Instrumentation

Specifications

Parameter Unit Specifications
Operating Windows Single Dual
Operating Wavelength nm 850 ± 40, 1310 ± 40 1550 ± 40 850/1310 ± 30, 850/1310 ± 30, 1310/1550 ± 30
Grade P A P A
Insertion Loss dB ≤ 1.0 ≤ 1.2 ≤ 1.2 ≤ 1.4
Wavelength Dependent Loss dB ≤ 0.25 ≤ 0.30
Temperature Dependent Loss (TDL) dB ≤ 0.20 ≤ 0.25 ≤ 0.25 ≤ 0.30
Channel Cross Talk dB ≥ 35
Return Loss dB ≥ 35
Repeatability dB ± 0.02
Switching Speed ms Typ.: 4
max.: ≤10
Operating Voltage V 5
Durability (Cycles) Million 10
Optical Power mW ≤ 500
Operating Temperature °C 0 to +70
Storage Temperature °C - 40 to +85
Package Dimensions mm V=L32.76 x W12.6 x H11.0

All values referenced are without connector.
