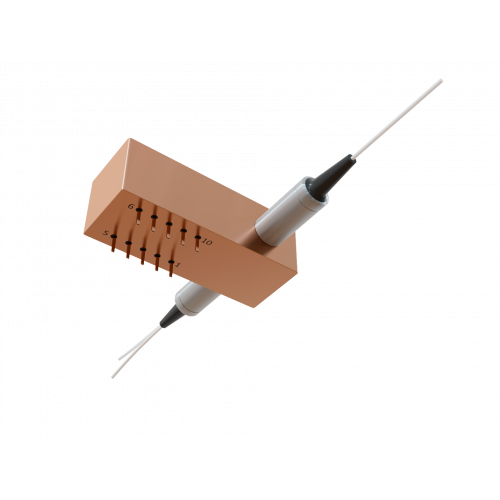

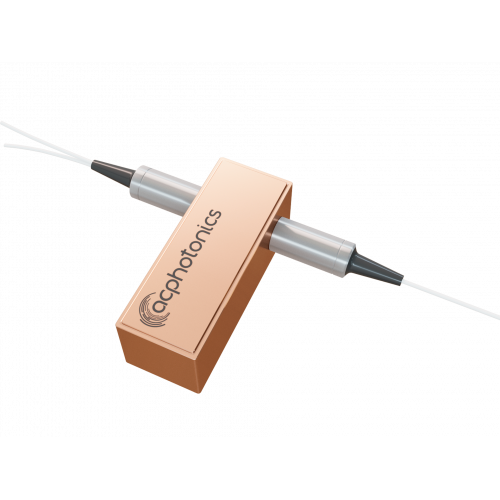

Dual 1x2 Mechanical Single-Mode Fiberoptic Switch

Dual 1x2 Mechanical Single-Mode Fiberoptic Switch

ACP’s MS Series switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal. The Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MS fiberoptic switches are true switching solution for optical networking applications.

Patent Pending

Features
  • Unmatched Low Cost
  • Low Insertion Loss
  • High Channel Isolation
  • Highly Stable and Reliable
  • Epoxy Free Optical Path
  • Latching or Non-Latching
Applications
  • Optical Netrwork Protection/Restoration
  • Optical Signal Routing
  • Configurable Optical Add/Drop
  • Transmitter and Receiver Protection
  • Network Test Systems
  • Instrumentation

Specifications

Parameter Unit Specifications
Operating Windows Single Dual
Operating Wavelength nm 1310 ± 40 or 1550 ± 40 1310 / 1550 ± 30
Grade P A P A
Insertion Loss dB ≤ 0.5 ≤ 0.8 ≤ 0.7 ≤ 1.0
Temperature Dependent Loss dB ≤ 0.15 ≤ 0.20 ≤ 0.15 ≤ 0.20
Wavelength Dependent Loss dB ≤ 0.25 ≤ 0.30
Polarization Dependent Loss dB ≤ 0.05
Channel Cross Talk dB ≥ 55
Return Loss dB ≥ 55
Repetability dB ± 0.02
Switching Speed ms Typ.: 4
Max.: ≤5
Operating Voltage V 5 ± 0.5
Durability (Cycles) Million 10
Optical Power mW ≤ 500
Operating Temperature °C 0 to +70
Storage Temperature °C - 40 to +85
Package Dimensions mm H Package: L22.3 x W12.1 x H11.0
V Package: L25 x W12.6 x H8.5

All values referenced are without connector.
