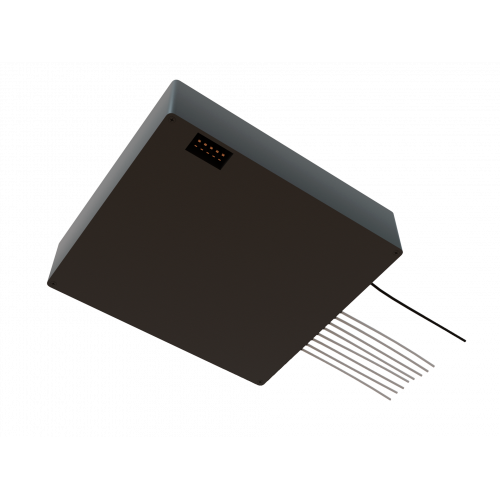

1x8 Mechanical Single-mode Switch
ACP’s MS Series switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal. The Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MS fiberoptic switches are true switching solution for optical networking applications.
Features
- Unmatched Low Cost
- Low Insertion Loss
- High Channel Isolation
- Highly Stable and Reliable
- Epoxy Free Optical Path
- Latching
Applications
- Optical Netrwork Protection/Restoration
- Optical Signal Routing
- Configurable Optical Add/Drop
- Transmitter and Receiver Protection
- Network Test Systems
- Instrumentation
Specifications
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Operating Windows | Single | Dual | |
| Operating Wavelength | nm | 1260 - 1360 or 1510 - 1560 | 1310/1550 ± 30 |
| Grade | P | P | |
| Insertion Loss | dB | ≤ 1.5 | ≤ 1.8 |
| Wavelength Dependent Loss | dB | ≤ 0.25 | ≤ 0.30 |
| Polarization Dependent Loss | dB | ≤ 0.2 | |
| Channel Cross Talk | dB | ≥ 50 | |
| Return Loss | dB | ≥ 55 | |
| Repetability | dB | ± 0.05 | |
| Switching Speed (Typ.) | ms | ≤ 25 | |
| Power Supply |
+5VDC Voltage: 5V +5DC Current: ≤200mA +3.3VDC Voltage: 3.3V |
||
| Digital Interface Logic | CMOS (3.3V) | ||
| Durability (Cycles) | Million | 10 | |
| Optical Power | mW | ≤ 300 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions (LxWxH) | mm | 86x80x20 | |
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Operating Windows | Single | Dual | |
| Operating Wavelength | nm | 1260 - 1360 or 1510 - 1560 | 1310/1550 ± 30 |
| Grade | P | P | |
| Insertion Loss | dB | ≤ 1.5 | ≤ 1.8 |
| Wavelength Dependent Loss | dB | ≤ 0.25 | ≤ 0.30 |
| Polarization Dependent Loss | dB | ≤ 0.2 | |
| Channel Cross Talk | dB | ≥ 50 | |
| Return Loss | dB | ≥ 55 | |
| Repetability | dB | ± 0.05 | |
| Switching Speed (Typ.) | ms | ≤ 25 | |
| Power Supply |
+5VDC Voltage: 5V +5DC Current: ≤200mA +3.3VDC Voltage: 3.3V |
||
| Digital Interface Logic | CMOS (3.3V) | ||
| Durability (Cycles) | Million | 10 | |
| Optical Power | mW | ≤ 300 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions (LxWxH) | mm | 86x80x20 | |
All values referenced are without connector.
