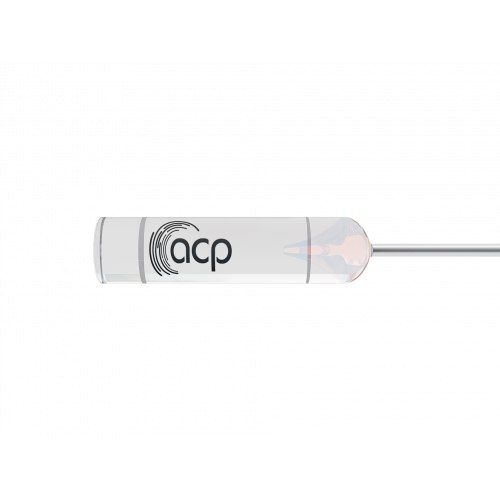

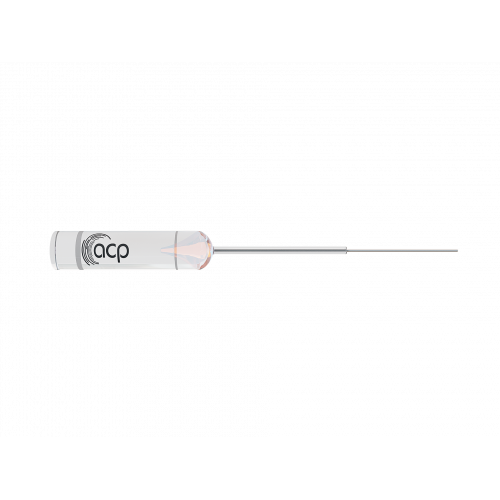

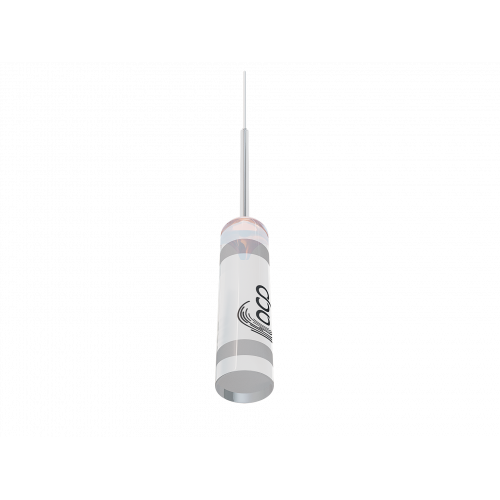

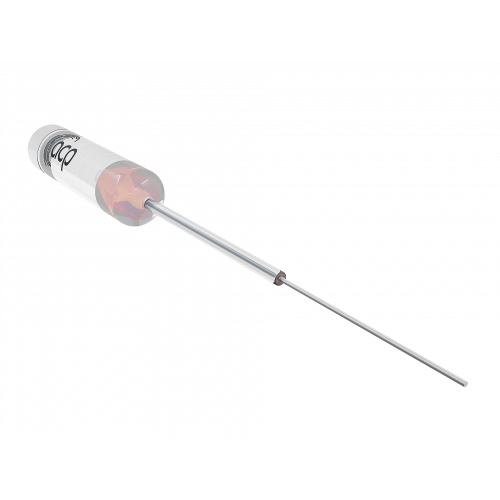

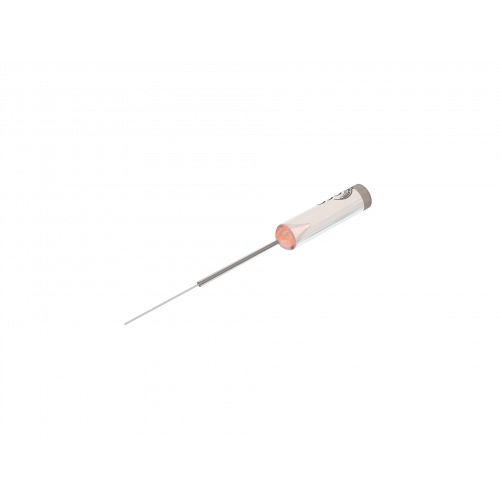

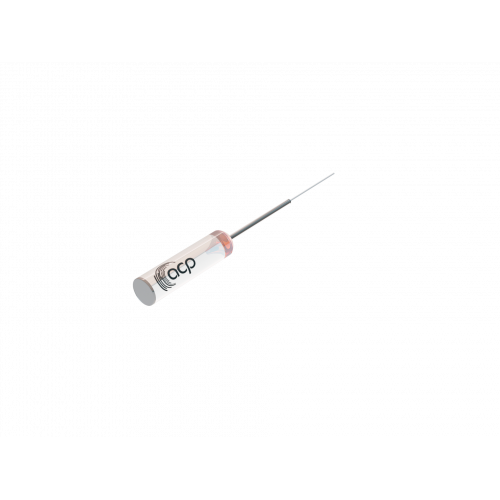

Single Fiber Pigtail
Features
- Low Insertion Loss
- Low Back Reflection
- High Environmental Stability
Applications
- Fiberoptic Lab Use
- Dual Fiber Collimator Assembly
- WDM/Switches
- Circulator/Hybrid Components
Specifications
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Operating Wavelength | nm | 1310 or 1550 | 980/1550 or 1310/1550 |
| Operating Bandwidth | nm | ± 30 or ±100 | ± 30 |
| Angle Polish | ° | 0, 6, 8, 9, 11 or Custom | |
| Reflectance | % |
0.15 (Typ.) 0.25 (Max.) |
|
| Return Loss | dB |
60 (Typ.) 55 (Min.) |
|
| Optical Power | mW | ≤ 300 | |
| Operating Temperature | °C | - 20 to +75 | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions | mm |
1.8(D)x5~5.5(L); 1.8(D)x6.5~7.2(L); 1.25(D)x10(L); 1.0(D)x5~6(L) or Custom |
|
| Fiber Type |
250µm bare fiber or 900um tight buffer or 250µm bare fiber with protective loose tube |
||
