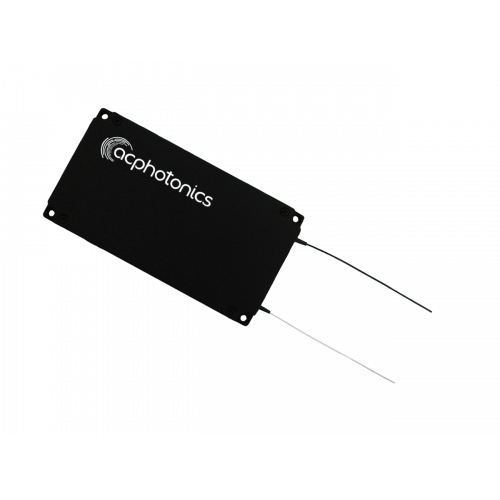

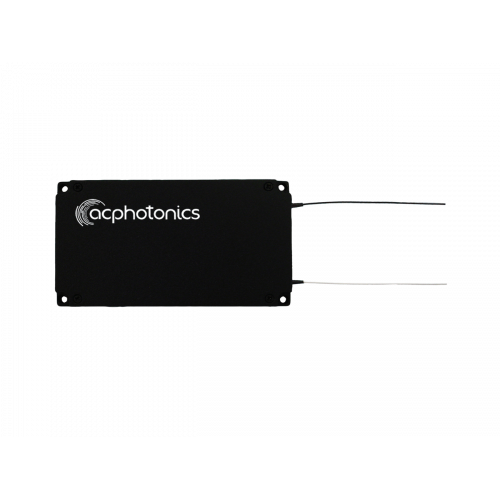

Singlemode to Multimode Fiber Converter
Features
- Low Insertion Loss
- Fully Filled Mode Distribution
- High Environmental Stability
Applications
- Test and Measurement
- Instrumentation
Specifications
Parameter | Unit | Specifications | ||
---|---|---|---|---|
Operating Wavelength | nm | 850, 1310, 1550 or custom | ||
Bandwidth | nm | ±50 | ||
Insertion Loss | dB | ≤ 0.8 | ||
Coupling Power Ratio (CPR) | dB | ≥18 | ||
Operating Temperature | °C | - 40 to +85 | ||
Storage Temperature | °C | - 40 to +85 | ||
Package Dimensions (LxWxH) | mm | 89 x 51 x 8.0 |
Note:
All values referenced are without connector.
