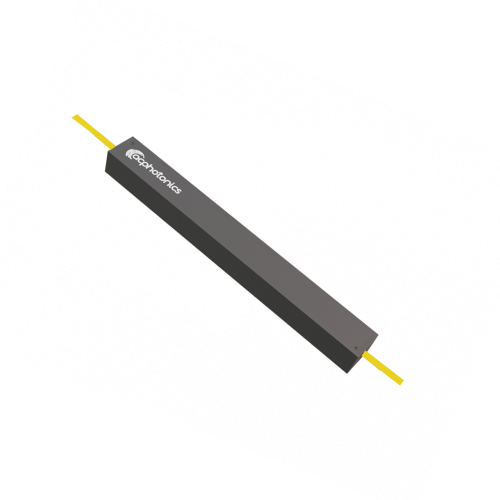

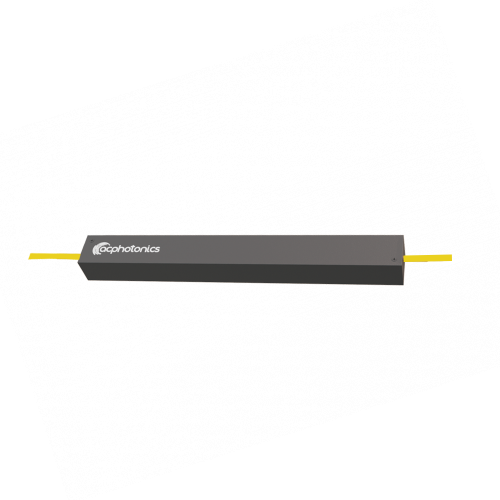

MM Fiber Scrambler
Features
- Low Insertion Loss
- Fully Filled Mode Distribution
- High Environmental Stability
Applications
- Test and Measurement
- Instrumentation
Specifications
Parameter | Unit | Specifications | ||
---|---|---|---|---|
Operating Wavelength | nm | 850, 1310, 1550 or custom | ||
Bandwidth | nm | ±40 | ||
Insertion Loss | dB |
Port 1 to 2: ≤ 0.8 Port 2 to 1: ≤ 0.8 |
||
Operating Temperature | °C | - 40 to +85 | ||
Storage Temperature | °C | - 40 to +85 | ||
Package Dimensions (LxWxH) | mm | 83x15x10 (B package) |
Note:
All values referenced are without connector.
