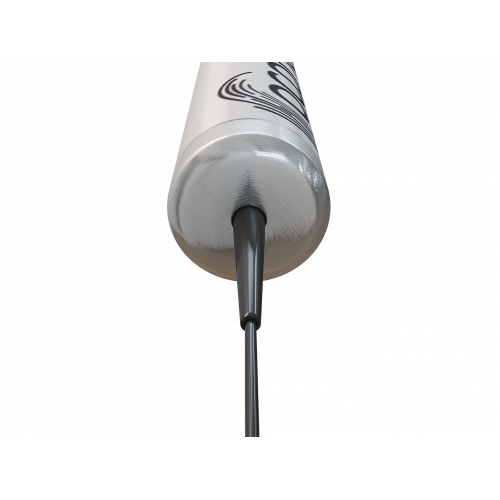

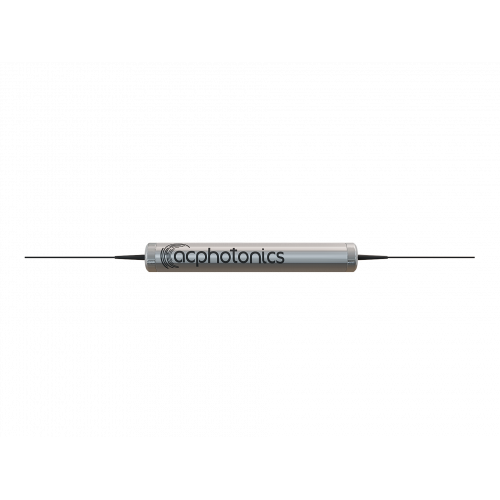

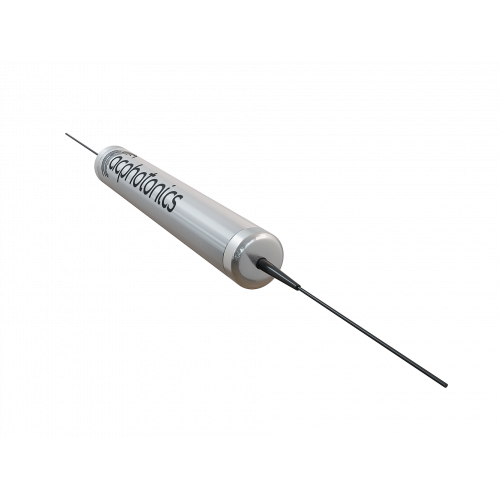

1060nm Narrow Band Polarization Insensitive Optical Isolator
Features
- High Isolation
- Low Insertion Loss
- Low PDL
- High Stability and Reliability
- Cost Effective
Applications
- Fiberoptic Amplifiers
- Pump Laser Source
- Fiberoptic Sensor
- Test and Measurement
- Instrumentation
Specifications
| Parameter | Unit | Specifications | |||
|---|---|---|---|---|---|
| Stage | Single Stage | Dual Stage | |||
| Grade | P Grade | A Grade | P Grade | A Grade | |
| Operating Wavelength | nm | 1060 | |||
| Typical Peak Isolation | dB | 40 | 50 | 55 | 50 |
| Minimum Isolation | dB | ≥ 301) | ≥ 411) | ≥ 451) | ≥ 441) |
| Typical Insertion Loss** | dB | 1.52) | 0.62) | 2.42) | 2.82) |
| Insertion Loss | dB | ≤ 2.03) | ≤ 0.73) | ≤ 3.43) | ≤ 4.23) |
| Return Loss | dB | ≥ 50 | ≥ 50 | ≥ 50 | ≥ 50 |
| Polarization Dependent Loss | dB | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 |
| Polarization Mode Dispersion | ps | ≤ 0.2 | ≤ 0.25 | ≤ 0.05 | ≤ 0.25 |
| Bandwidth | nm | ± 10 | |||
| Optical Power | mW | ≤ 300 | |||
| Operating Temperature | °C | - 20 to +70 | |||
| Storage Temperature | °C | - 40 to +85 | |||
| Package Dimensions | mm |
A=standard, Ø 5.5 x L34 for 250um Pigtail Fiber Ø 5.5 x L38 for 900um Pigtail Fiber |
|||
Note:
1) Overall bandwidth at 23°C
2) Not including connector, splice and fiber-end Fresnel losses.
3) Including PDL, operating wavelength range, -20° C to +70° C.
All values referenced are without connector.
