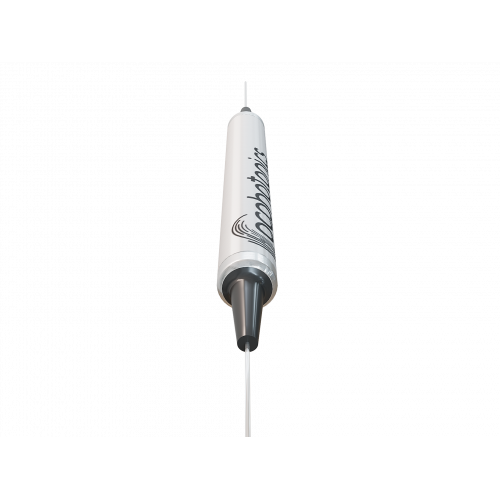

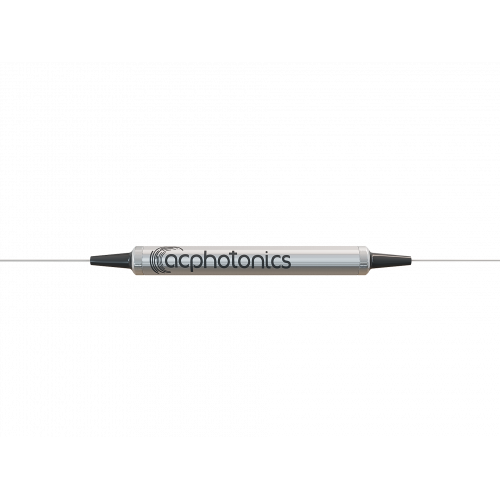

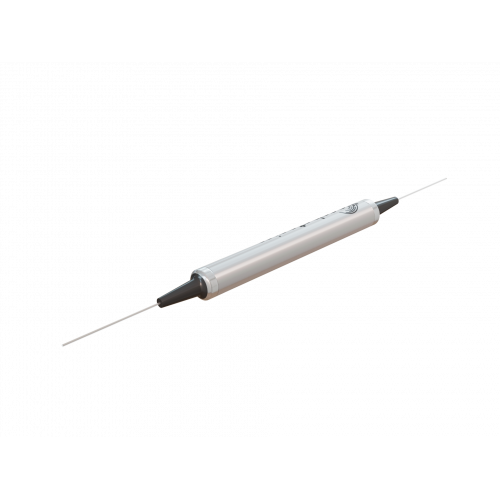

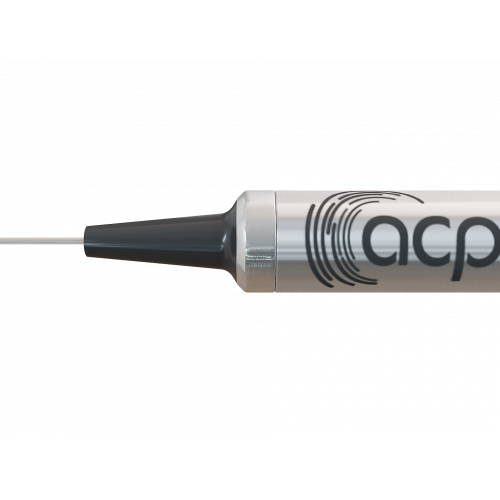

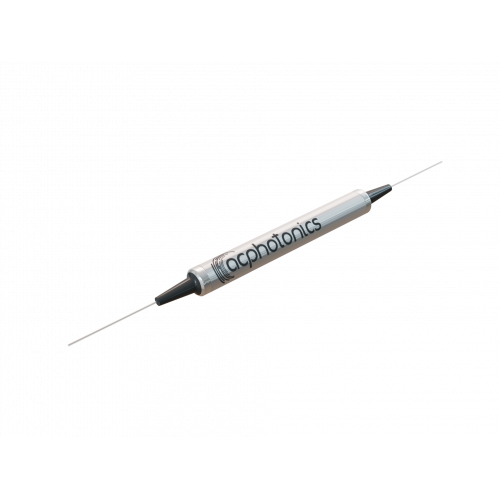

Tap Coupler / Optical Isolator Hybrid
Features
- High Isolation
- Low Insertion Loss
- High Return Loss
- Low Polarization Sensitivity
- Epoxy Free Optical Path
Applications
- Fiberoptic Amplifiers
- CATV Fiberoptic Links
- Fiberoptic Systems Testing
- Fiberoptic LAN Systems
- Telecommunications
Specifications
| Parameter | Unit | Specifications | |||
|---|---|---|---|---|---|
| Stage | Single | Dual | |||
| Operating Wavelength | nm | 1310 or 1550 | |||
| Bandwidth | nm | ± 15 | ± 30 | ||
| Tap Channel Isolation Loss | dB |
19.0 to 20.8 (1%) 16.2 to 18.0 (2%) 12.2 to 14.0 (5%) |
|||
| Minimum Isolation | dB | ≥ 311) | ≥ 451) | ||
| Insertion Loss Signal Channel (Typ.) | dB |
1 & 2%: 0.6 5%: 0.8 |
1 & 2%: 0.8 5%: 1.0 |
||
| Insertion Loss Signal Channel (Max.) | dB |
1 & 2%: ≤0.8 5%: ≤1.0 |
1 & 2%: ≤1.0 5%: ≤1.2 |
||
| Polarization Dependent Loss | dB | ≤ 0.10 | |||
| Return Loss | dB | ≥ 55 | |||
| Optical Power | mW | ≤ 300 | |||
| Operating Temperature | °C | 0 to +70 | |||
| Storage Temperature | °C | - 40 to +85 | |||
| Package Dimensions | mm | A=Standard, Ø 5.5 x L38 | |||
Note:
1) At 23° C over bandwidth.
All values referenced are without connector.
