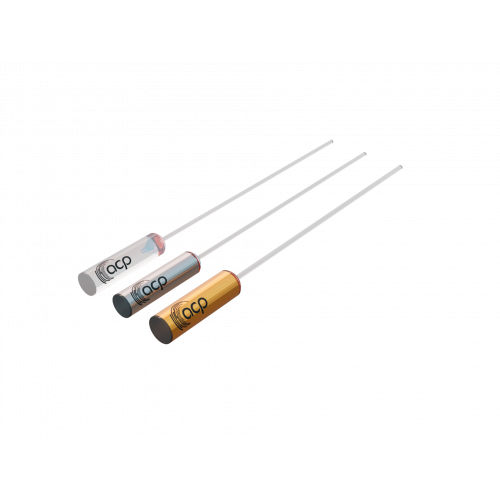

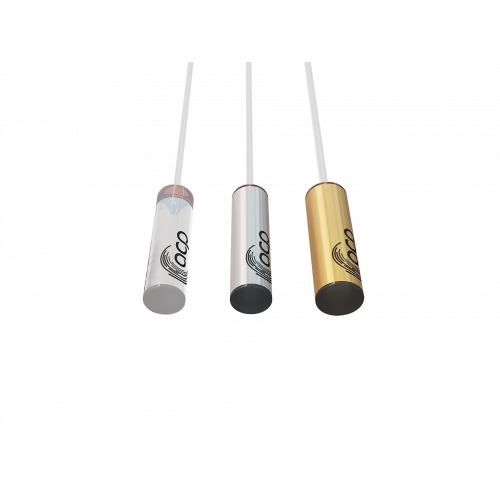

PM Fiber Collimator
Features
- Low Insertion loss
- Low Back Reflection
- High Environmental Stability
- High Extinction Ratio
Applications
- PM Isolator
- Laser Beam Collimating
- PW WDM
Specifications
| Parameter | Unit | Specifications | ||
|---|---|---|---|---|
| Operating Wavelength | nm | 1310±30, 1550±30 or custom | ||
| Working Distance | mm | 5 or custom | ||
| Insertion Loss | dB |
0.20 Typ. ≤0.25 Max. |
||
| Return Loss | dB | ≥ 60 | ||
| Extinction Ratio (ER) | dB |
25 Typ. ≥22 Min. |
||
| Tensile Load | N | 5 | ||
| Operating Temperature | °C | - 5 to +75 | ||
| Storage Temperature | °C | - 40 to +85 | ||
| Package Dimensions | mm |
Ø1.8(OD) Lens* (Standard): A=4x10 Gold plated SS tube B=3.2x10 Gold plated SS tube C=2.4x10 SS tube (Gold plated optional) D=2.78x10 Glass tube or custom size Ø1.0(OD) Lens* (Mini-size): E=2.8x10 SS tube (Gold plated optional) F=2.0x7 Glass tube G=1.4x6 Gold plated SS tube H=1.2x7 Glass tube |
||
1) The PM fiber and the connector key are aligned to the slow axis
2) The ER is for fiber ≤ 0.75m. Increase fiber length can decrease the ER.
3) For devices with connectors, insertion loss will be 0.3dB higher, return loss will be 5dB lower, and extinction ratio will be 2dB lower
*The diameter indicates outer diameter (OD) of lens.
All values referenced are without connector.
