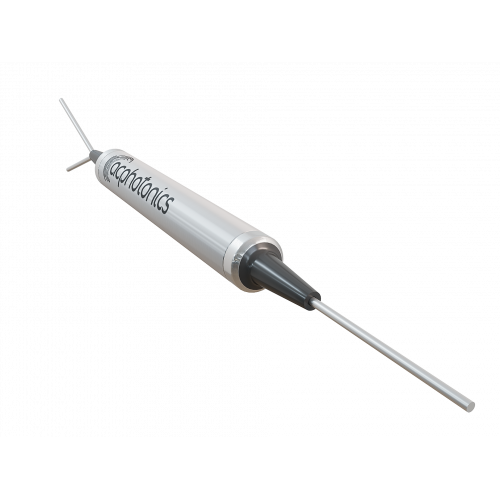

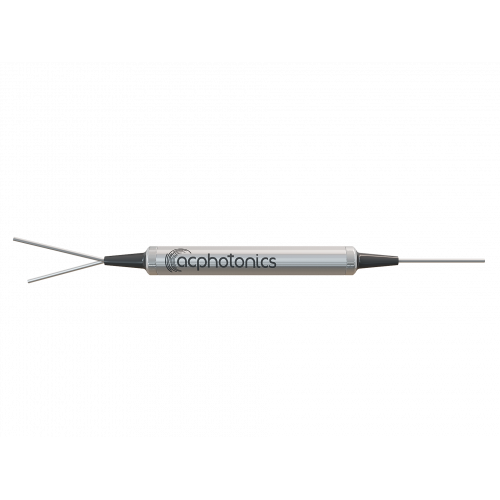

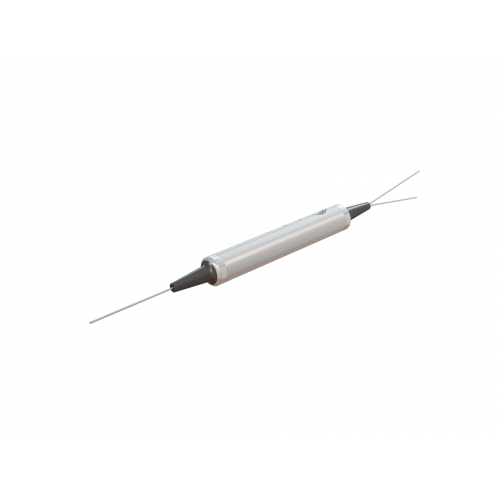

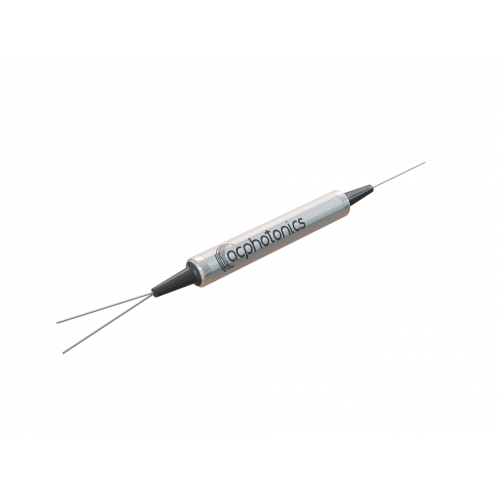

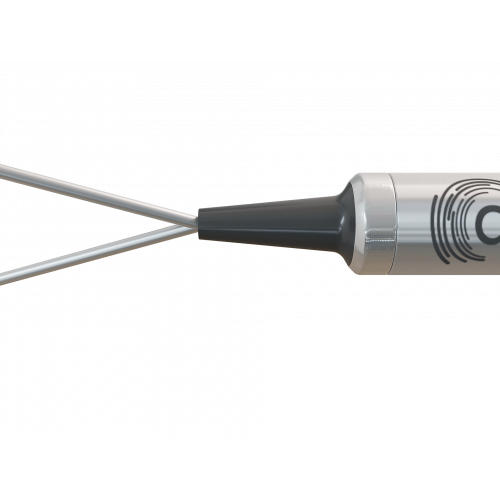

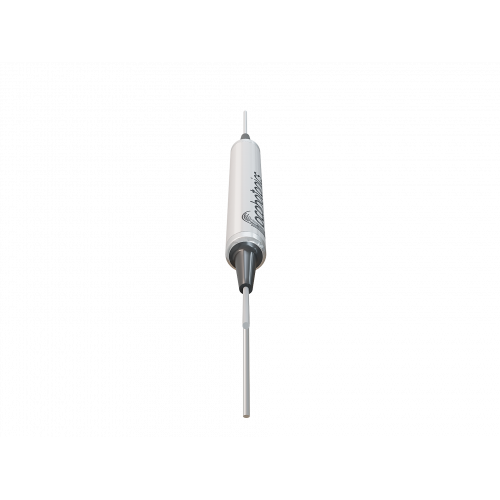

High Power Polarization Maintaining Optical Circulator
Features
- Ultra Small Size
- Wide Wavelength Range
- Singlemode PM and Multimode Fiber Versions
- High Attenuation Range
- High Resolution
- Designed to meet Telcordia Standar
- Low Cost
Applications
- Power Equalization and Control in MultiChannel Optical
- Amplified Networks
- Channel ON/OFF Switch
- CATV
- LAN
- Receiver Protection
- Optical Sensors
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Operating Wavelength | nm | 1550±30 |
| Grade | P | |
| Insertion Loss | dB | ≤ 1.0 |
| Minimum Isolation | dB | ≥ 35 |
| Channel Crosstalk | dB | ≥ 50 |
| Extinction Ratio* | dB | ≥ 20 |
| Return Loss | dB | ≥ 50 |
| Optical Power | W | ≤ 1, 2, 3, or 5 |
| Operating Temperature | °C | 0 to +70 |
| Storage Temperature | °C | - 40 to +85 |
| Fiber Type | PM | |
| Package Dimensions | mm | A=Ø5.5xL63 |
Note
*Extinction ratio is guaranteed from 10 ~ 50°C.
All values referenced are without connector.
