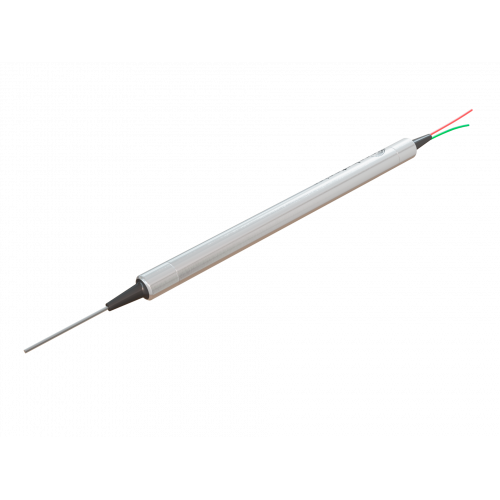

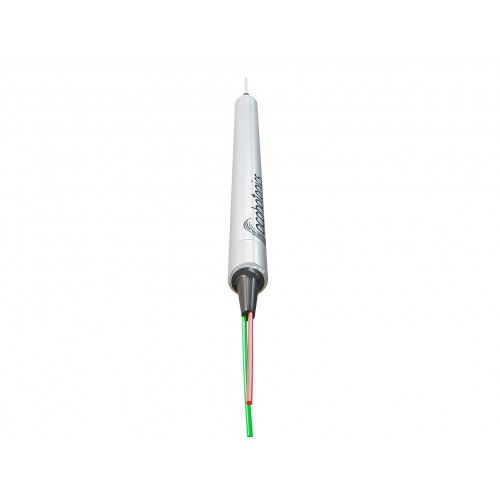

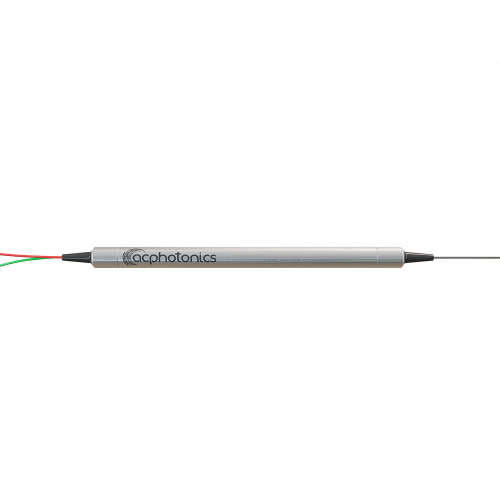

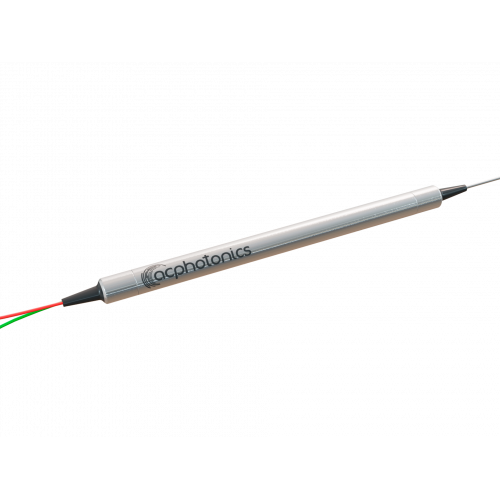

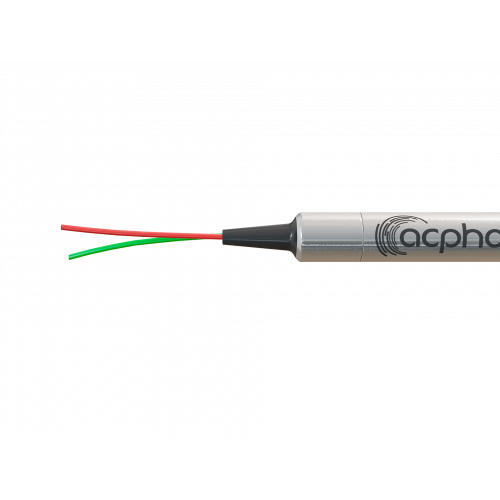

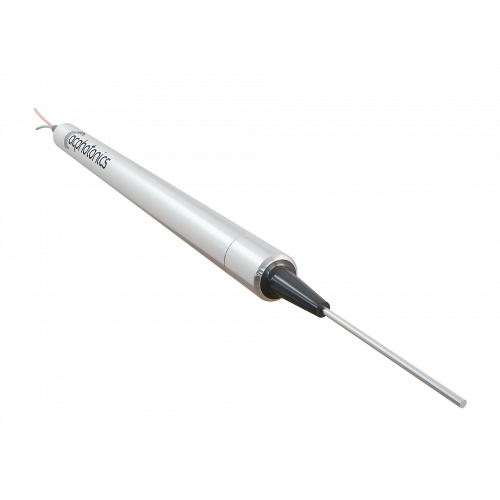

Multimode Optical Circulator
ACP’s Multimode optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application.
Features
- Low Insertion Loss
- Wide Band, High Isolation
- Low PDL
- Compact In-line Package
- High Stability and Reliability
- Epoxy Free Optical Path
Applications
- Optical Amplifier
- Metro Area Network
- Wavelength Add / Drop
- Dispersion Compensation
- Bi-directional Communication
Specifications
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Grade | P | A | |
| Operating Wavelength | nm | 1310±30, 1550±30, 1585±30 | |
| Typical Insertion Loss | dB | 1.0 | 1.1 |
| Insertion Loss | dB | ≤ 1.3(Max.) | ≤ 1.5(Max.) |
| Channel Peak Isolation | dB | ≥ 40 | |
| Channel Minimum Isolation | dB | ≥ 30 | |
| Channel Cross Talk | dB | ≥ 30 | |
| Return Loss | dB | ≥ 30 | |
| Optical Power | W | ≤ 5 | |
| Operating Temperature | °C | 0 to +70 | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions | mm | Ø5.5 x L68 | |
All values referenced are without connector.
