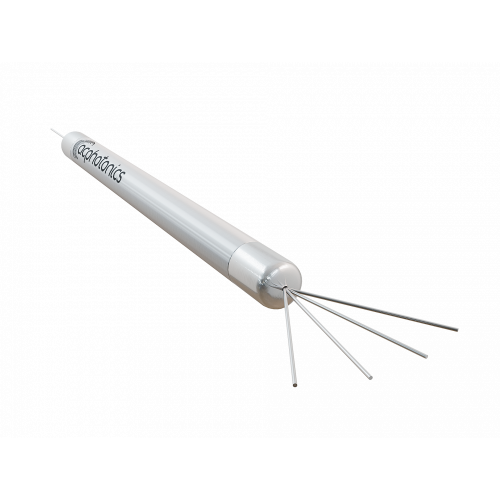

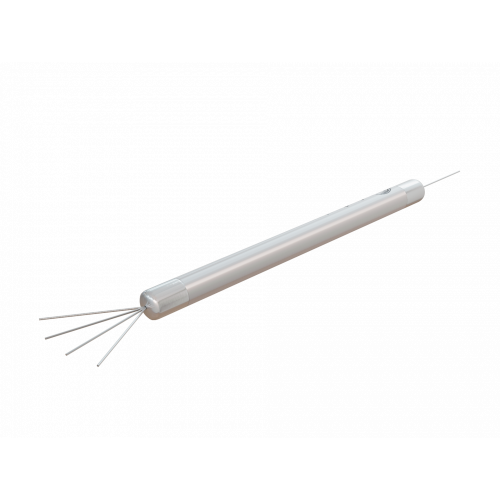

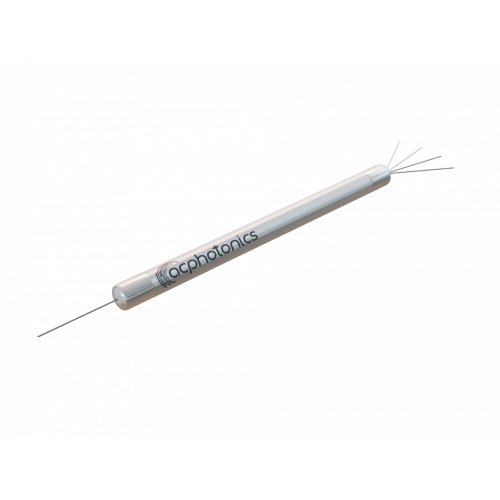

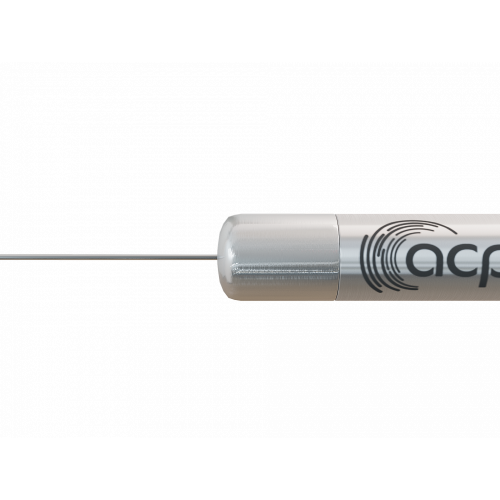

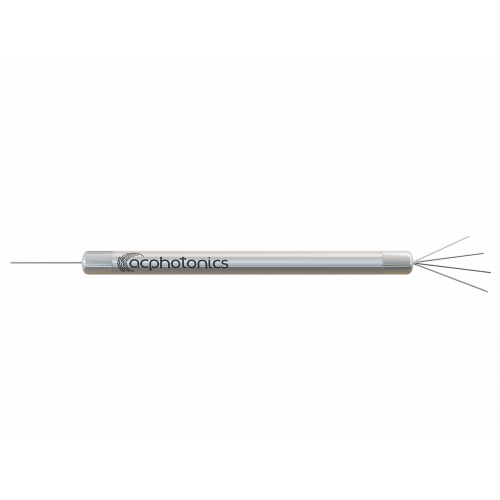

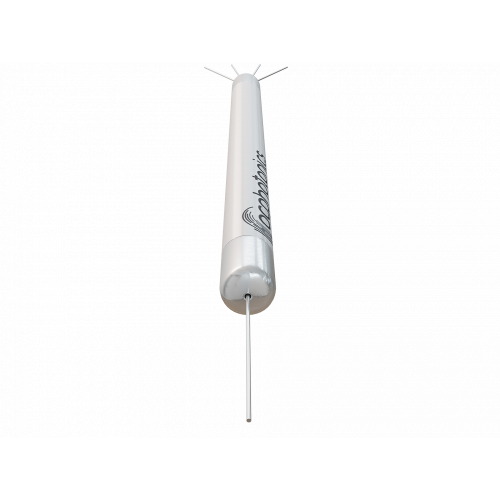

1x4 Single mode Fused Coupler
Features
- Low Excess Loss
- Single Fusion Design
- Uniform Power Splitting
- Compact Size
Applications
- Telecommunication Systems
- Digital, Hybrid and AM-Video System
- CATV Systems
- Fiber Sensors
Specifications
Parameter | Unit | Specifications | |||||
---|---|---|---|---|---|---|---|
Operating wavelength | nm |
Standard: 1310±10, 1480±10, 1550±10, 1585±10 or Custom |
Wideband: 1310±40, 1480±40, 1550±40, 1585±40nm or Custom |
Dual window wideband: 1310/1550±40, 1310/1585±40 or Custom |
|||
Port Configuration | 1x4 | ||||||
Grade | P | A | P | A | P | A | |
Insertion loss | dB | ≤ 6.7 | ≤ 7.6 | ≤ 6.7 | ≤ 7.6 | ≤ 7.5 | ≤ 7.9 |
Excess loss | dB | ≤ 0.20 | ≤ 0.30 | ≤ 0.20 | ≤ 0.30 | ≤ 0.30 | ≤ 0.40 |
Uniformity | dB | ≤ 1.3 | ≤ 1.5 | ≤ 1.6 | ≤ 1.8 | ≤ 1.6 | ≤ 1.8 |
Polarization dependent loss | dB | ≤ 0.12 | ≤ 0.15 | ≤ 0.12 | ≤ 0.15 | ≤ 0.20 | ≤ 0.30 |
Directivity | dB | ≥ 50 | ≥ 55 | ||||
Operating Temperature | °C | - 20 to +75 ( - 40 to +85 Available upon request) | |||||
Storage Temperature | °C | - 40 to +85 | |||||
Package Dimensions (LxWxH) | mm |
A= Standard, Ø3.0xL54 for 250um fiber Ø3.0xL60 for 900um fiber C=98x14x8.5 (2&3 mm fiber jacket) S=89x51x9.2 (2&3 mm fiber jacket) |
All values refenced are without connector.
