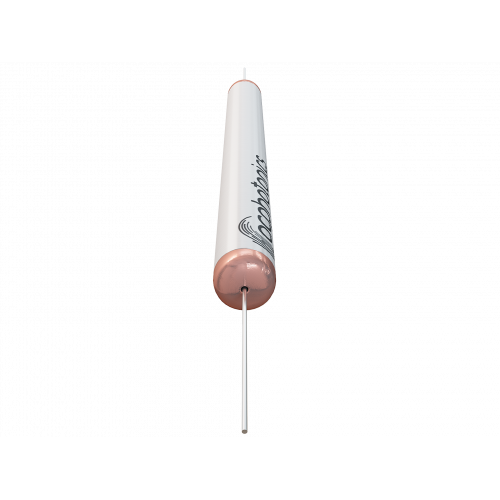

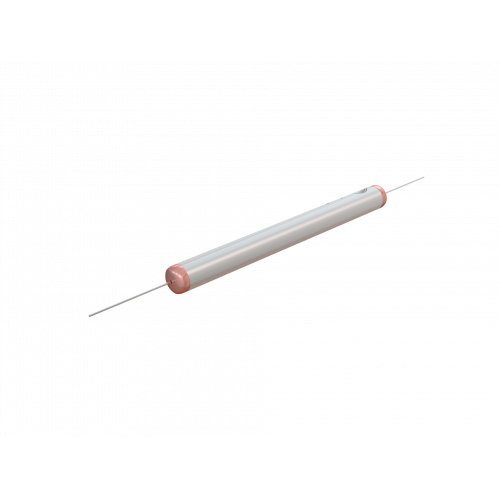

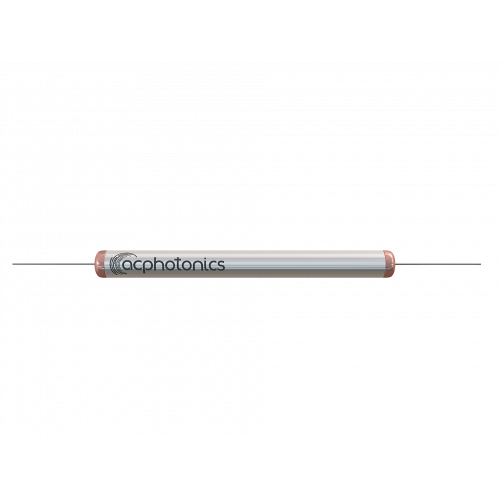

In-line Attenuator
Features
- All-Fiber Construction
- In-Line Configuration
- Excellent Environmental Stability and Reliability
Applications
- Telecommunication Systems
- Digital, Hybrid and AM-Video System
- CATV Systems
- Local Area Networks
Specifications
| Parameter | Unit | Specifications | |
|---|---|---|---|
| Fiber Orientation | Single window | Dual window | |
| Operating Wavelength | nm | 1310±40, 1550±40, 1585±40 or Custom | 1310/1550±40, 1310/1585±40 |
| Attenuation Tolerance | dB |
Attenuation Range: 1-5: ± 0.30 6-10: ± 0.50 11-20: ± 1.0 21-25: ± 1.5 |
Attenuation Range: 1-5: ± 0.50 6-10: ± 0.80 11-20: ± 1.3 21-25: ± 1.8 |
| Back Reflection | dB | ≥ 60 | |
| Operating Temperature | °C | - 20 to +75 (- 40 to +85 is also available upon request) | |
| Storage Temperature | °C | - 40 to +85 | |
| Package Dimensions | mm |
M= Ø3.0X40 A= Ø3.0X54 B= Ø3.0X60 C=98X14X8.5 (LXWXH) |
|
All values referencedare without connector.
